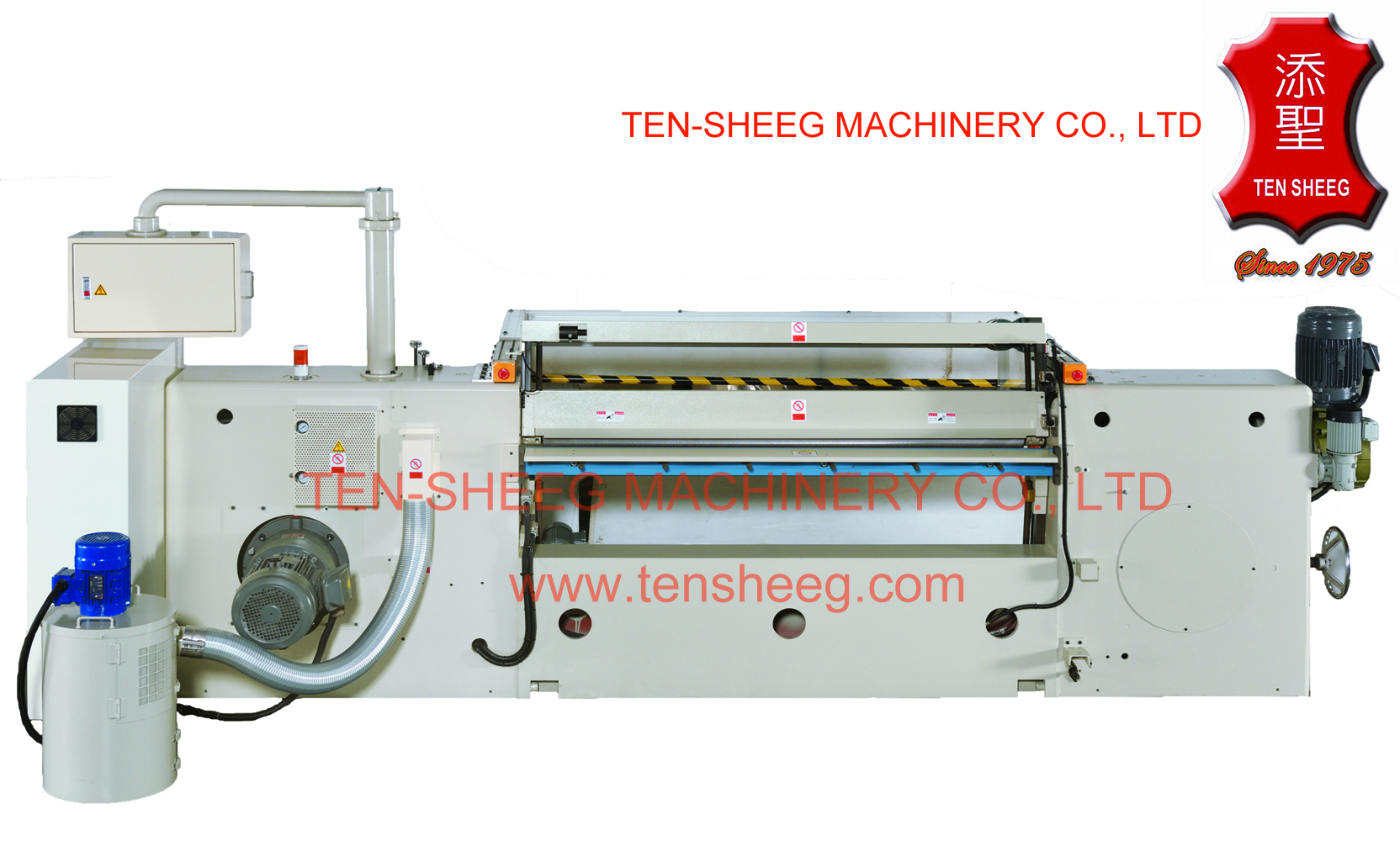

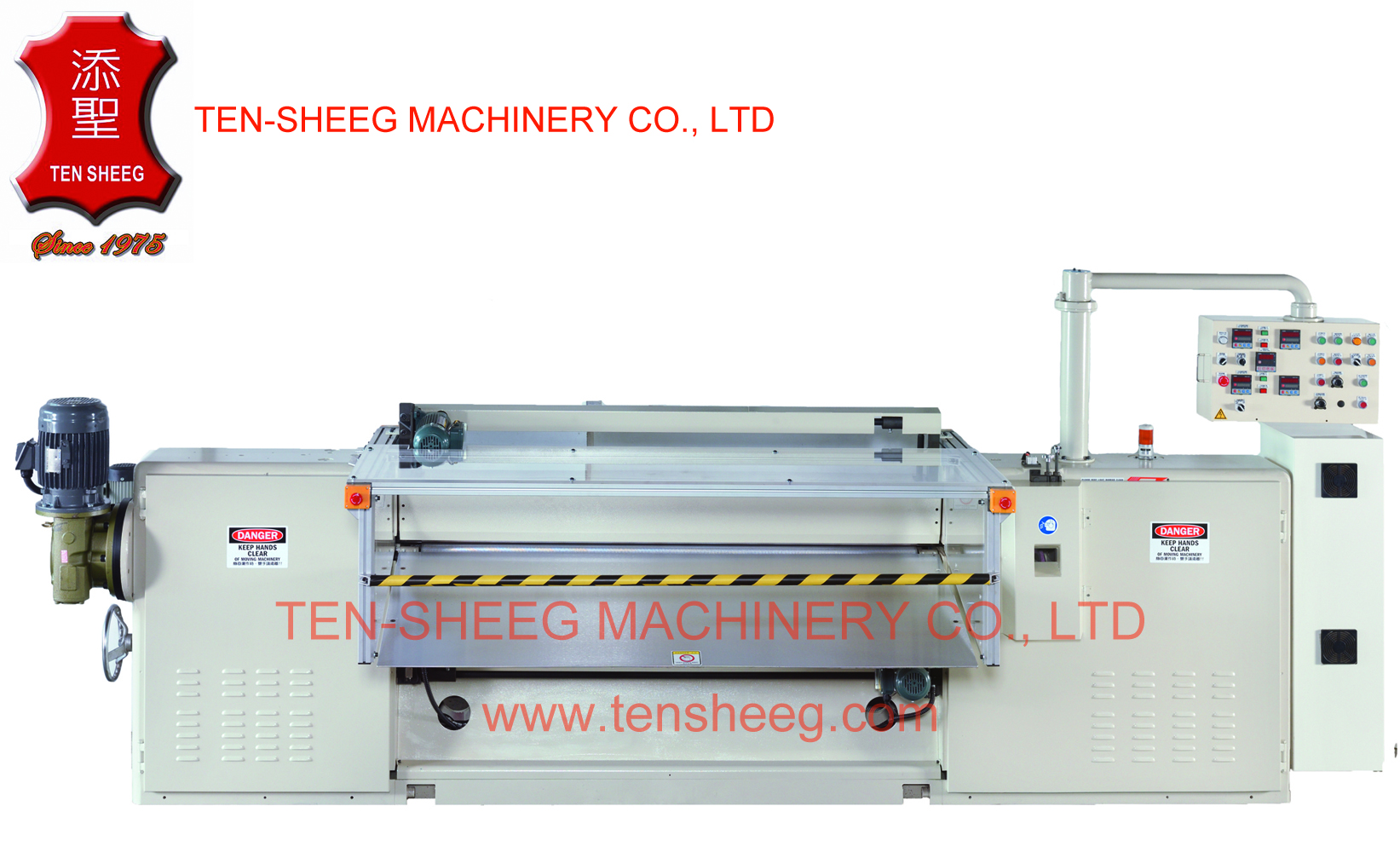

BAND-KNIFE SPLITTING MACHINE
SM-616K SM-618K
FEATURES:
* Automatic band-knife adjustment:
* An electric sensor monitors the front edge position of the blade and automatically moved forward to maintain the correct position as the blade gets Narrower through grinding.
* Band-knife is continuos sharpened while Splitting.
* Motorized height adjustment of the upper and bottom Feeding Roller regulate to the layer thickness.
* Dusty collector for blade sharpener.
* Close tolerance:+/-0.1mm When starting with level material.
* Automatic band-knife adjustment: An electric sensor monitors the front edge position of the blade and automatically moved forward to maintain the correct position as the blade gets Narrower through grinding.
- Specifications
- Video
- Layout
- Consumables
| Available Working Width | 1500mm |
| Available Material Width (max.) | 1600mm |
| Available Cutting Thickness | 150mm |
| Available Hardness (Shore C) | Up to 60 shoe C |
| Cutting Tolerance | "+-0.1mm |
| Roller Openning | Up 150mm / Down 150mm |
| Knife Position control | Auto Position controlling |
| Power Capacity | 17HP |
| Knife Motor | 7.5HP x 1 |
| Feeding roller motor | 5HP X 1 |
| Auto knife position motor | 1/8HP x 1 |
| Feeding roller Up/Dw motor | 1/8HP x 2 |
| Knife Grinding Motor | 1HP x 2 |
| Motor Mounting | |
| Feeding Speed | 22.6m/min 50Hz Inverter frequency control |
| Band Knife Speed | 175m/min 50Hz Inverter frequency control |
| Band Knife Spec | 1mmt x 90mm x 8860mm |
| Splitting Concept | Feeding material by rollers and split |
| Electric Specification | CE |
| Net/Gross Weight | 4860kg / 5000kg |
| Vacuum Dust Collector | 2HP |
| Part No. | Part Description | Spare quantity | Delievery time (Days) |
| 669C307 | 刀口定位感測檢知電眼SZU-3MGNR# | 1 | 30 |
| EL0105 | 近接開關SD-1705NA1( PS-05N <5米>)電眼 | 1 | 15 |
| 689F416 669D406 |
磨刀砂輪:ψ200 x13t xψ90mm | 4 | 2 |
| 689F110-1 | 鑽石刀頭 Diamond dresser | 4 | 2 |
| 689F110 | 鑽石刀頭(桿加上689F110-1)整組 Diamond dresser set |
2 | 2 |
| 669A32918 | 刀片-1.00t X 90 X 8860mm | 10 | 5 |
| 669C10218B | W1800 夾刀鋼板 | 2 | 30 |
| 669C11418 | W 1800 頂刀條 | 2 | 30 |
| 669CC2 | 壓板座頂刀螺桿 | 5 | 14 |
| 669DD2 | 磨刀頂刀螺桿 | 1 | 14 |
| 669EE2 | 刀輪下頂刀螺桿 | 1 | 14 |
| 689C408 | 擦刀片羊毛氈10*70*190mm | 2 | 2 |
| 689F403 | 磨刀底壓板Blade sharpening fixed plate | 1 | 5 |
| 669D501 | 鑽石刀頭(桿加上689F110-1)整組 Diamond dresser set |
2 | 2 |
| EL0506 | 送料輪高度顯示器(EMC-361) 搭配磁性尺 |
1 | 14 |
| EL0507 | 送料輪高度偵測 EMS-01-SH 磁性尺 |
1 | 14 |
