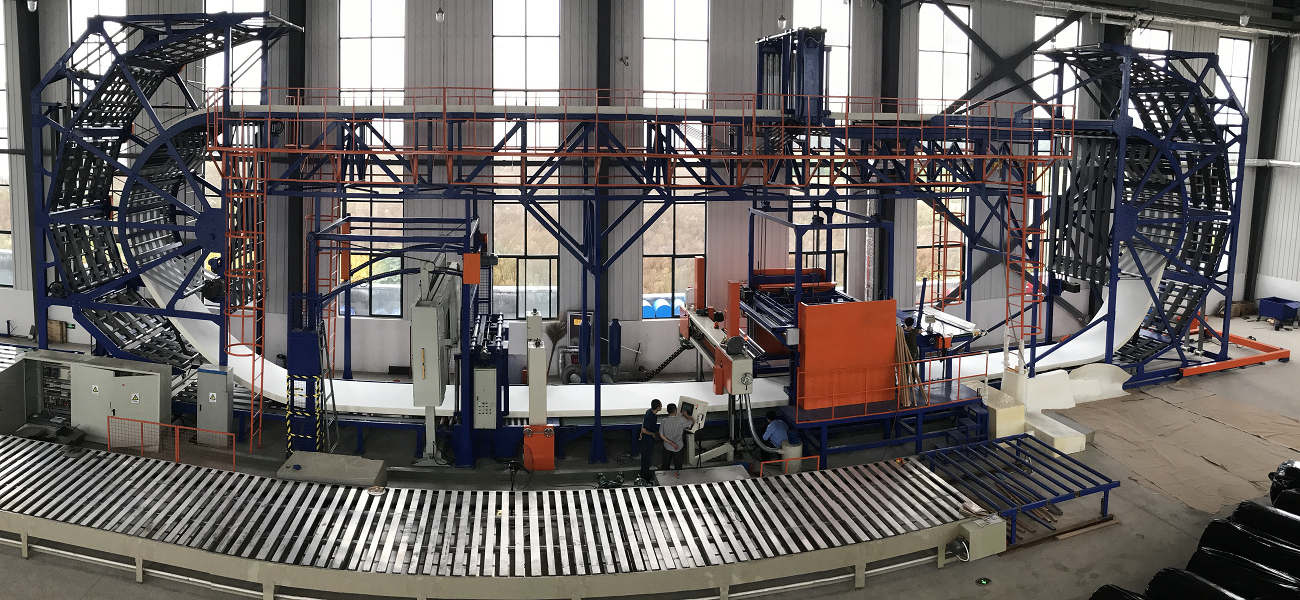

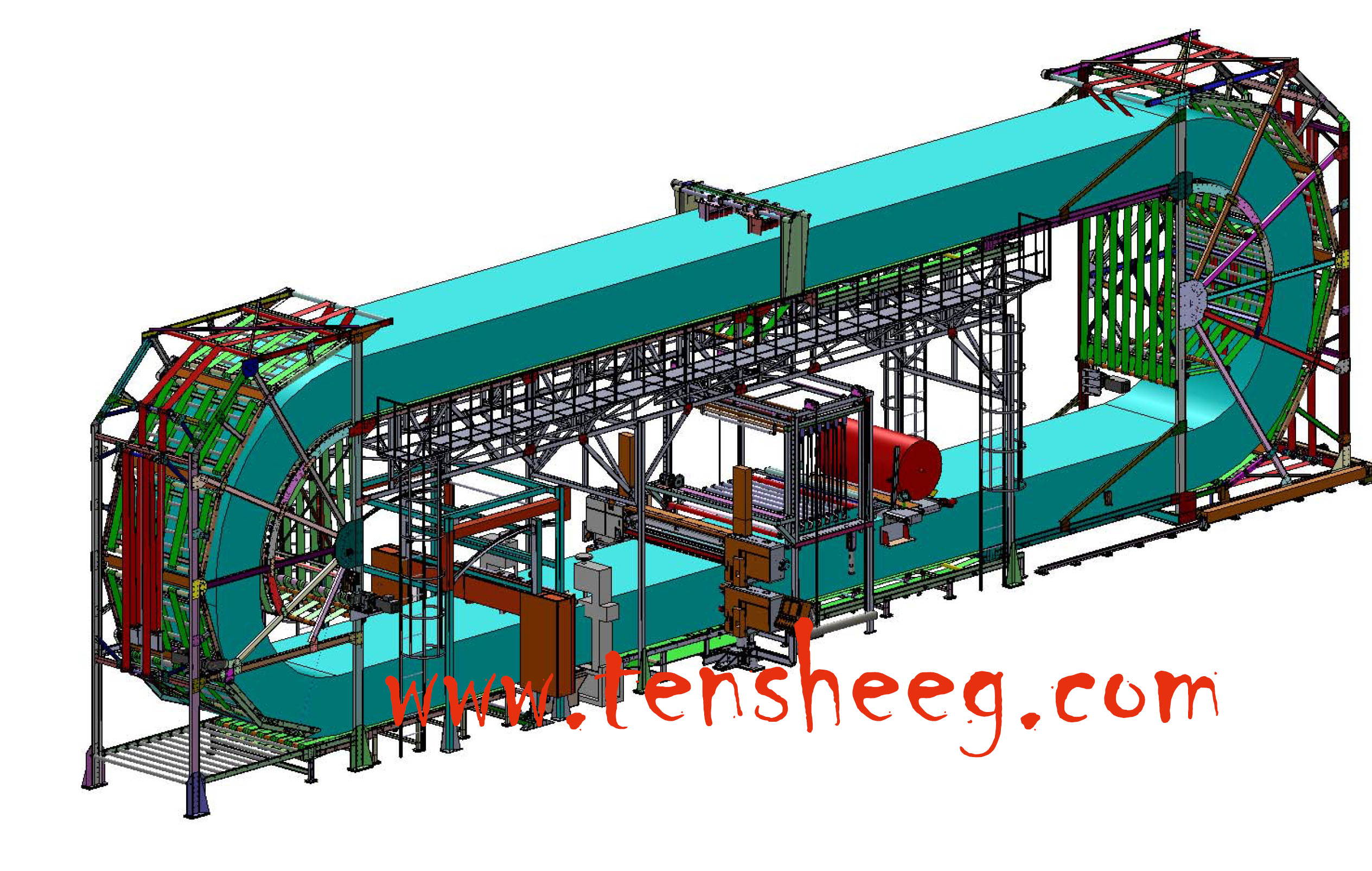

PU BANDKNIFE LOOP VACUUM SPLITTING MACHINE
SM-668

FUNCTION:

SPLITTING MATERIAL:  PU SPONGE.

FEATURES:

*Fully Automatic Operation.
*Continues PU foam splitting(raw material 52~60M)
*Automatically adjusting of thickness every splitting in the controller by PLC.
* Friendly Computer touch screen interface
* Automatic band-knife position adjustment.
*Dust collector for blade sharpener.
*Cross cutter, for cutting off material after reached the set length.
*One-man operation.

  • Specifications
  • Video
  • Consumables
Model Working width (mm)

Power (HP)

Max. Material Thickness (mm) Material Transfer Concept Main Structure Material

Splitting Speed (M/Hr)

Winding Unit

Edge Cutter

Angular Cutter

Tolerance (mm) Splitting Concept
SM-668 2500 123 1200 Conveyor Casting Steel

80

Yes Optional Optional +/- 0.2

Part No. Name Picture
689E10 Blade Table Pusher Set(For 1.6M)

689E100

Band-knife

689F416

GRINDSTONE
689F110 Diamond dresser Set For Grinding Wheel
689E30 Blade locator Pusher(Set)
