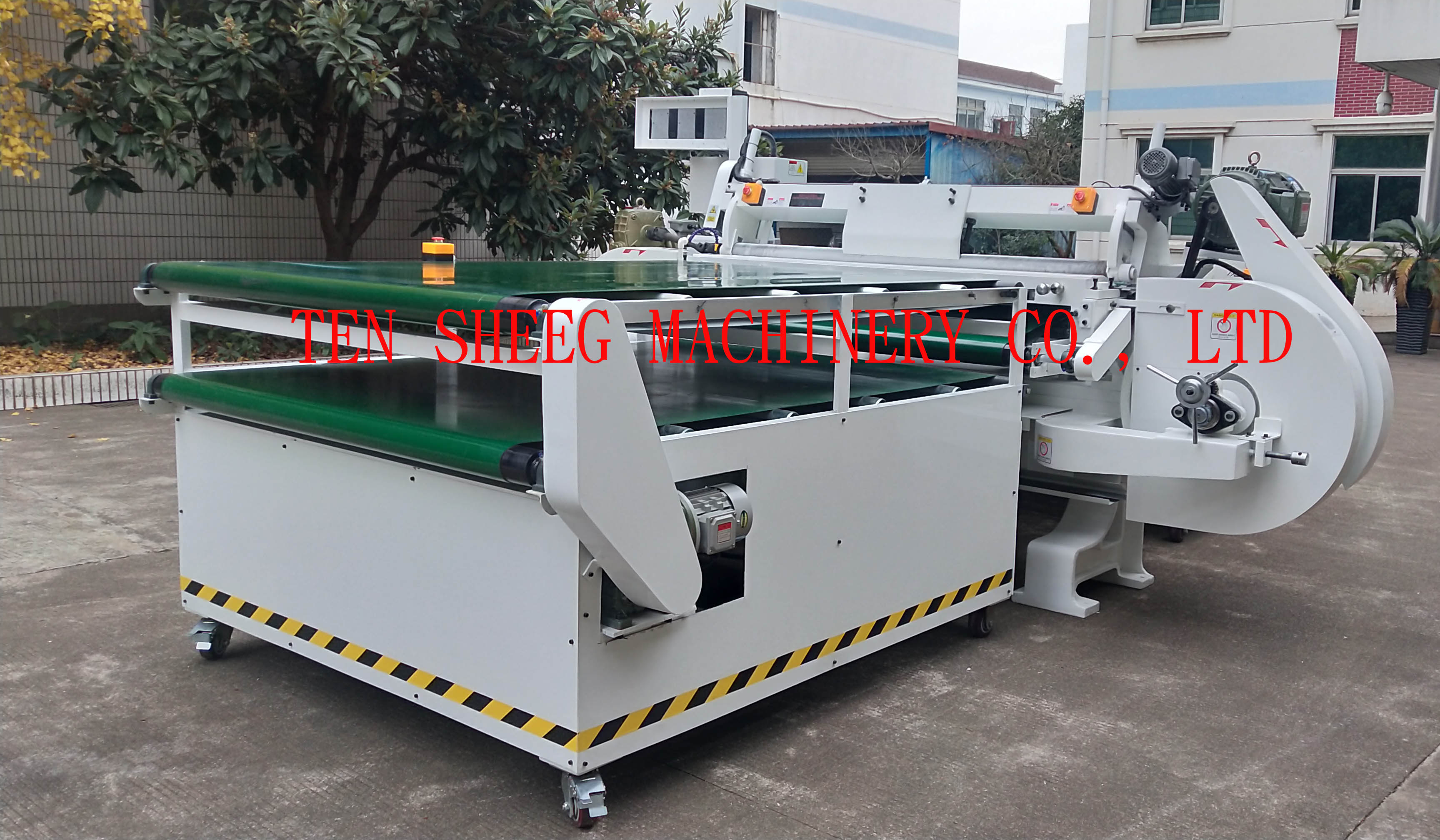

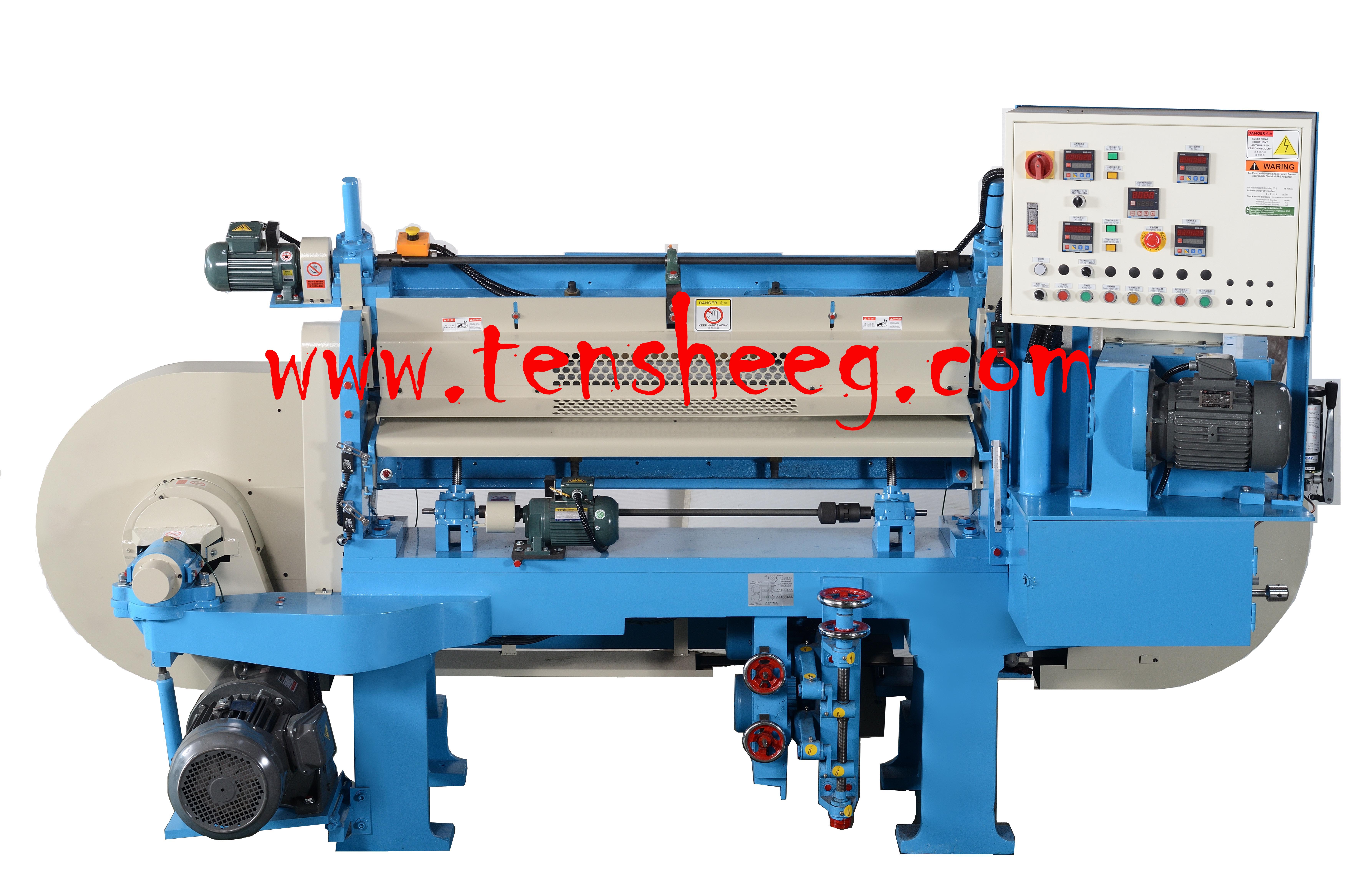

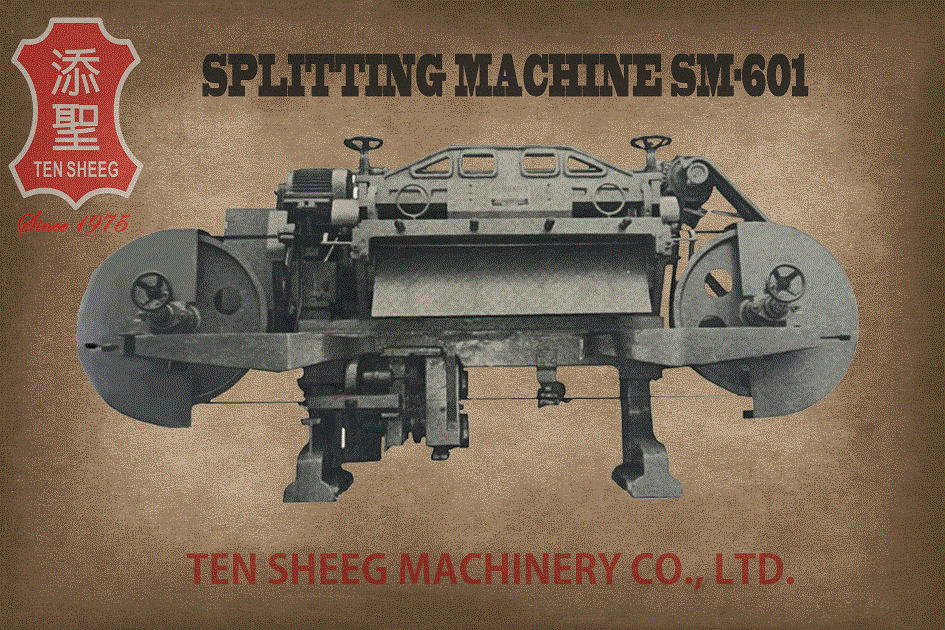

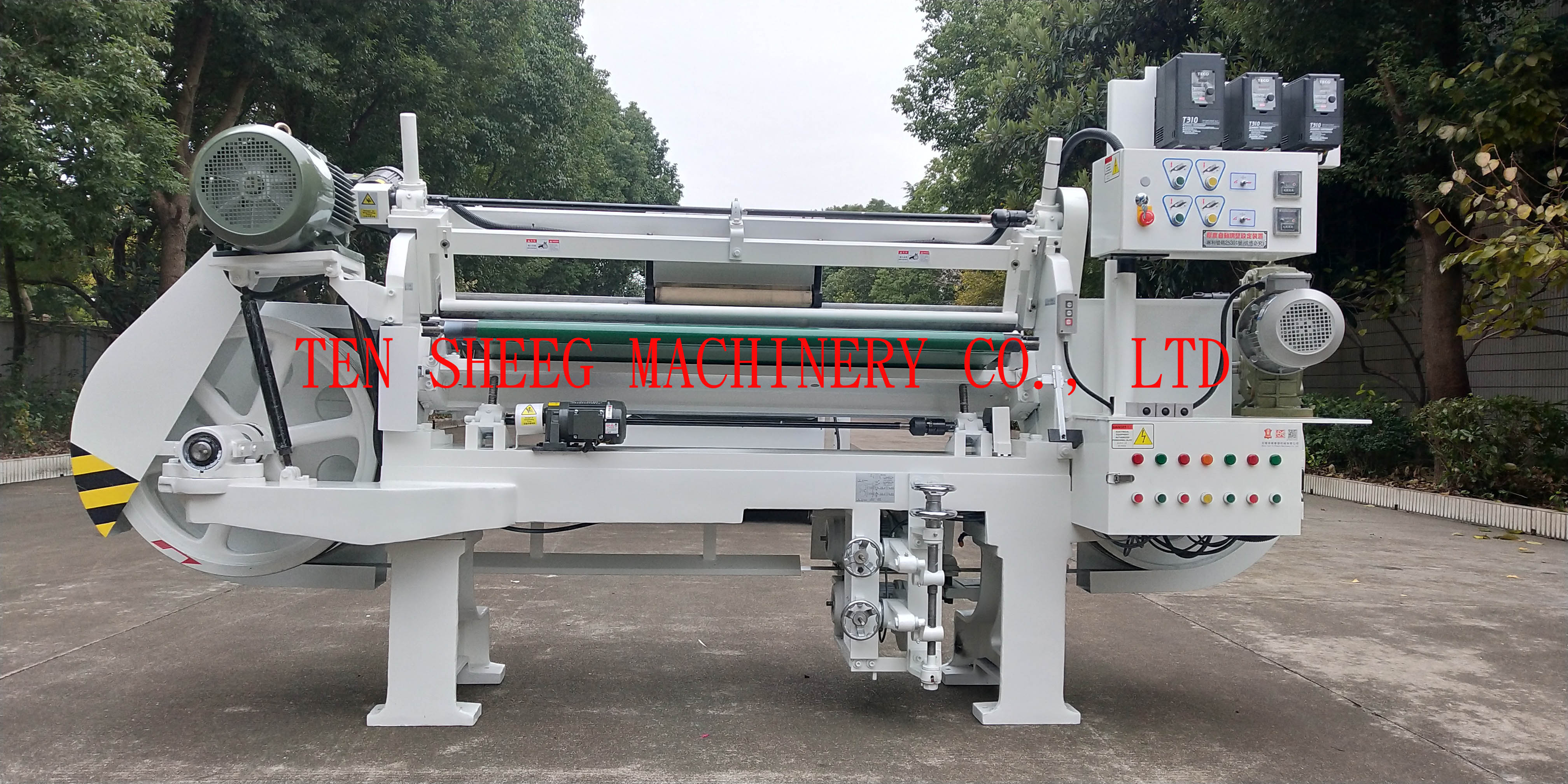

HIGH SPEED SPLITTING MACHINE
SM-60 Serial
FEATURES:
Change band-knife without tearing down the comer of the band-knife fixed table.
Splitting and sharpen the blade without water.
Characteristics:
*Feeding roller speed is controlled by the firm and durable gearbox.
*Motorized height adjustment of upper feeding roller. The lower feeding roller is adjusted by manual.
*Optional Function:
-
-
- Digitalize Feeding Rollers position display.
- Motorized height adjustment of upper and lower feeding rollers.
- Feeding roller speed is controlled by inverter.

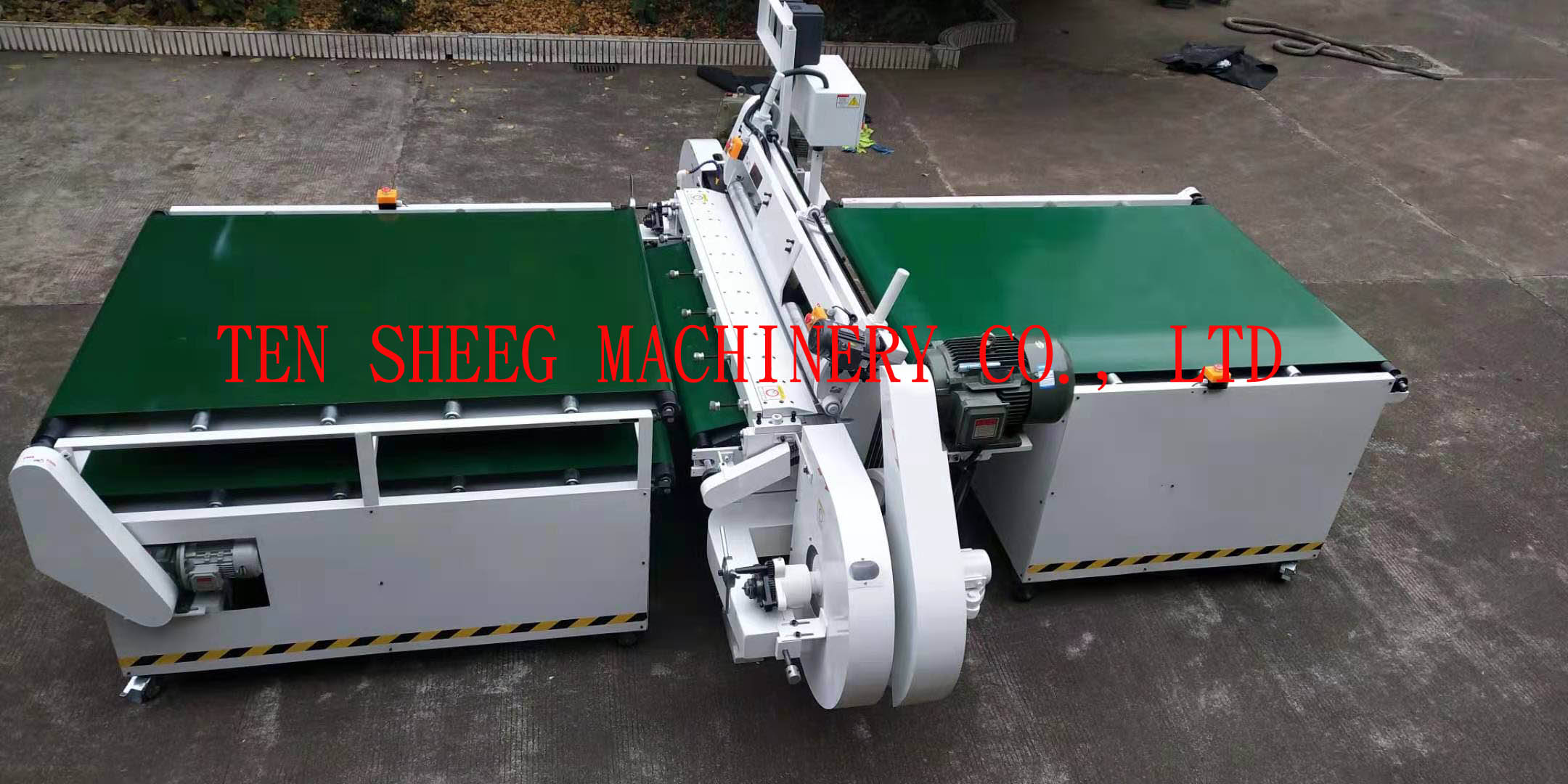

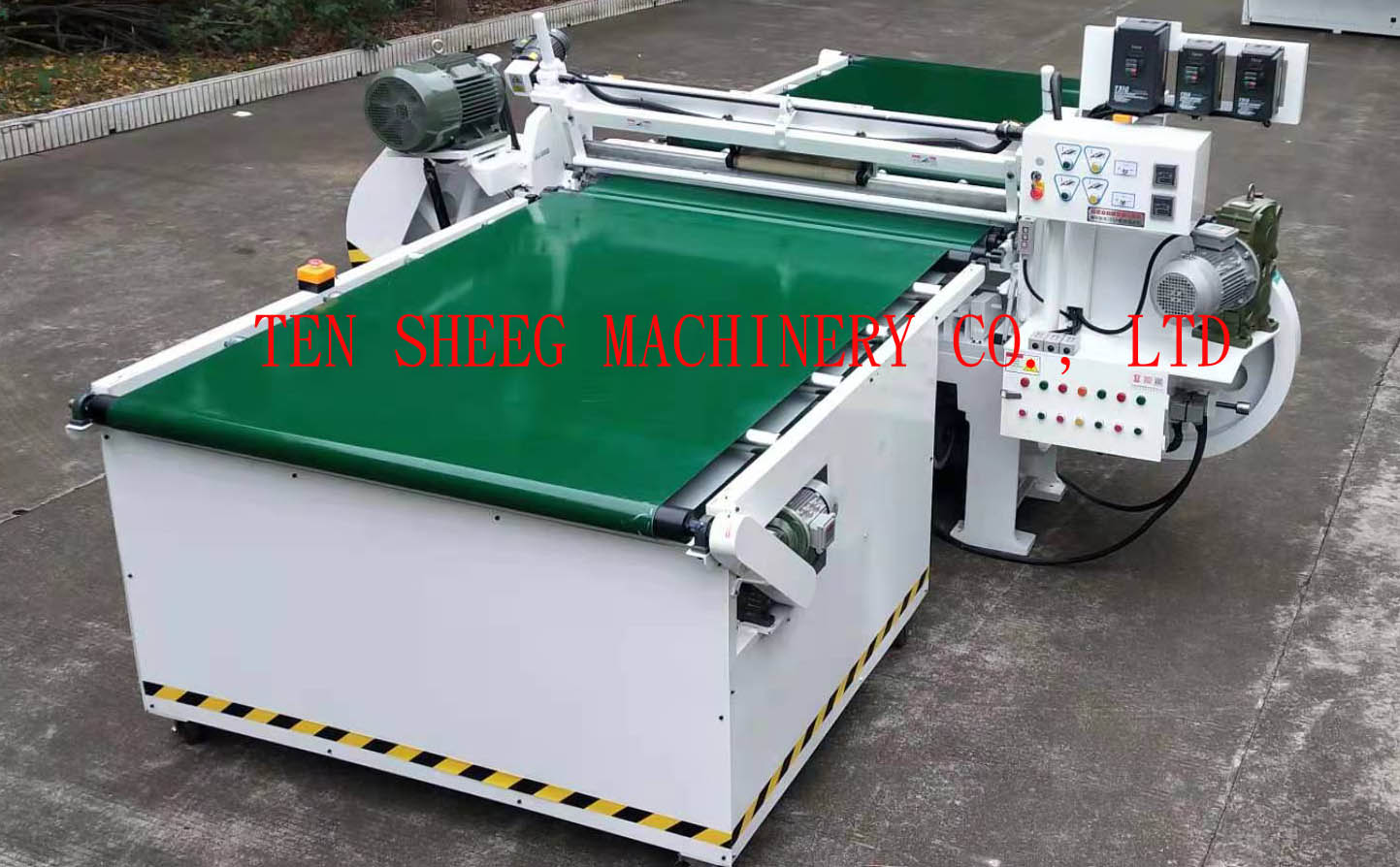

- Conveyor belt feeding
- Automatic lubrication device
- Air blowing device
-
- Specifications
- Description
- Video
- Layout
- Consumables
Model | Working width | Power | Splitting Speed | Splitting Thickness | Splitting Thin Sheet | Splitting Hardness | Splitting Materials | Splitting Concept |
---|---|---|---|---|---|---|---|---|
SM-601 | 1800mm(72") | 12.5HP | 10 - 40M/min | 150mm Above: 100mm、Below: 50mm |
1mm | 10 - 75 | EVA, PE, PVC, RUBBER, and similar material | |
SM-602 | 1500mm(60") | 12.5HP | 10 - 40M/min | 150mm Above: 100mm、Below: 50mm |
1mm | 10 - 75 | EVA, PE, PVC, RUBBER, and similar material | |
SM-635 | 1500mm(60") | 12.5HP | 10 - 40M/min | 100mm Above: 50mm、Below: 50mm |
1mm | 5 - 75 | EVA, PE, PVC, RUBBER, and similar soft material | |
SM-636 | 1800mm(72") | 12.5HP | 10 - 40M/min | 150mm Above: 50mm、Below: 50mm |
1mm | 5 - 75 | EVA, PE, PVC, RUBBER, and similar soft material |
Below this machine has the honor to receive each patent:
Taiwan Invention Patent | 105121 | |
Taiwan Invention Patent | 138205 | |
Mainland China Invention Patent | ZL 97 2 0296.X |
Size:
Model: SM-601/SM-602/SM-635/SM-636
Model | Length(mm) | Width(mm) | Height(mm) |
---|---|---|---|
SM-601 | 3800 | 1250 | 2000 |
SM-602 | 3600 | 1250 | 2000 |
SM-635 | 3600 | 1250 | 2000 |
SM-636 | 3800 | 1250 | 2000 |
Part No. | Name | Picture |
SM-203 |

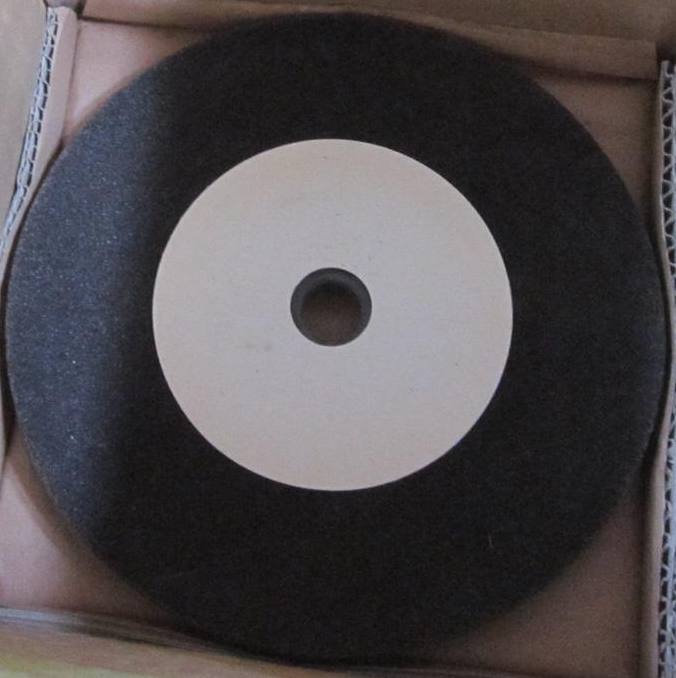

Grinding Wheel | |
SM-204 |

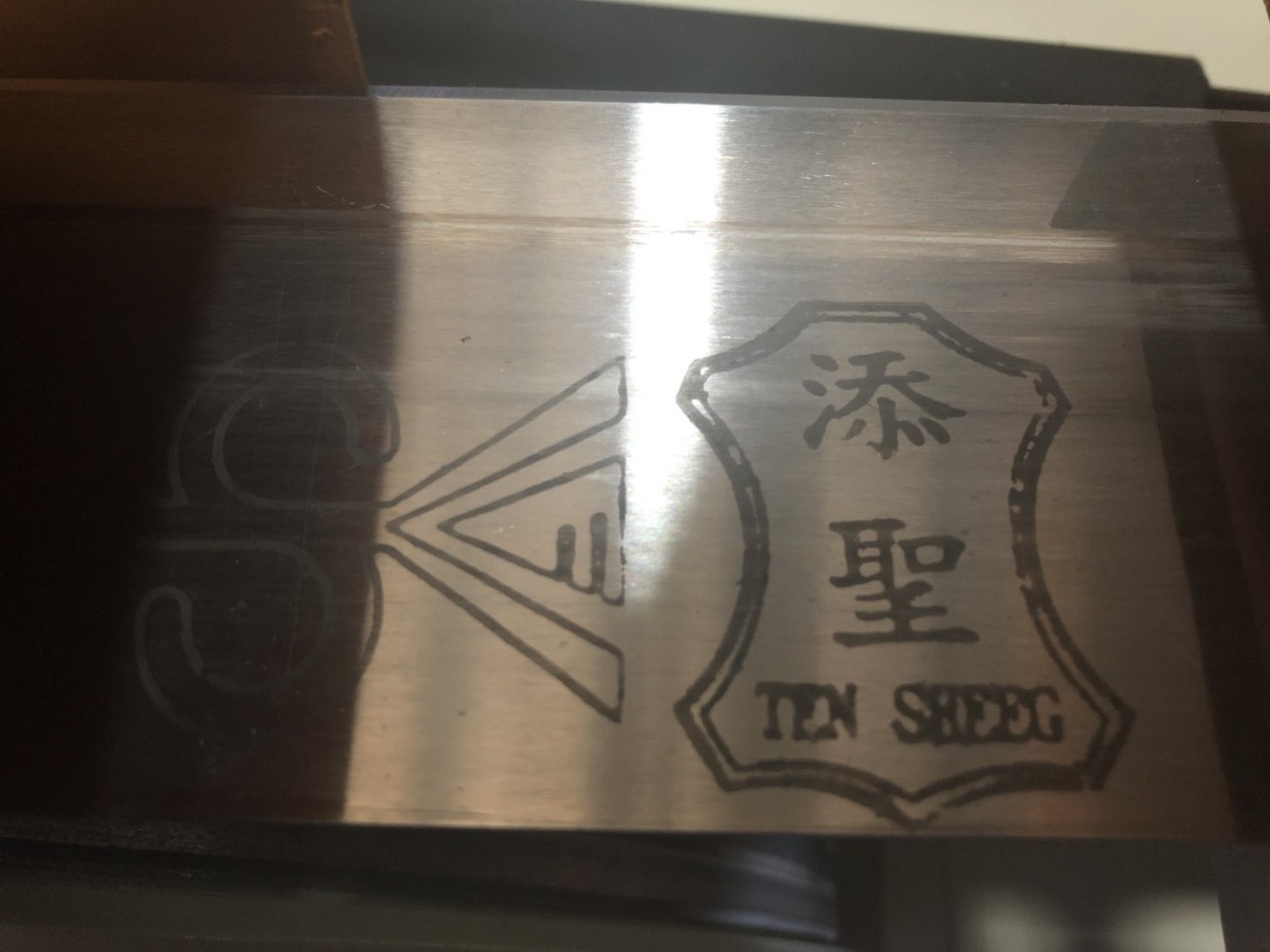

Band-knife | |
SM-217 |

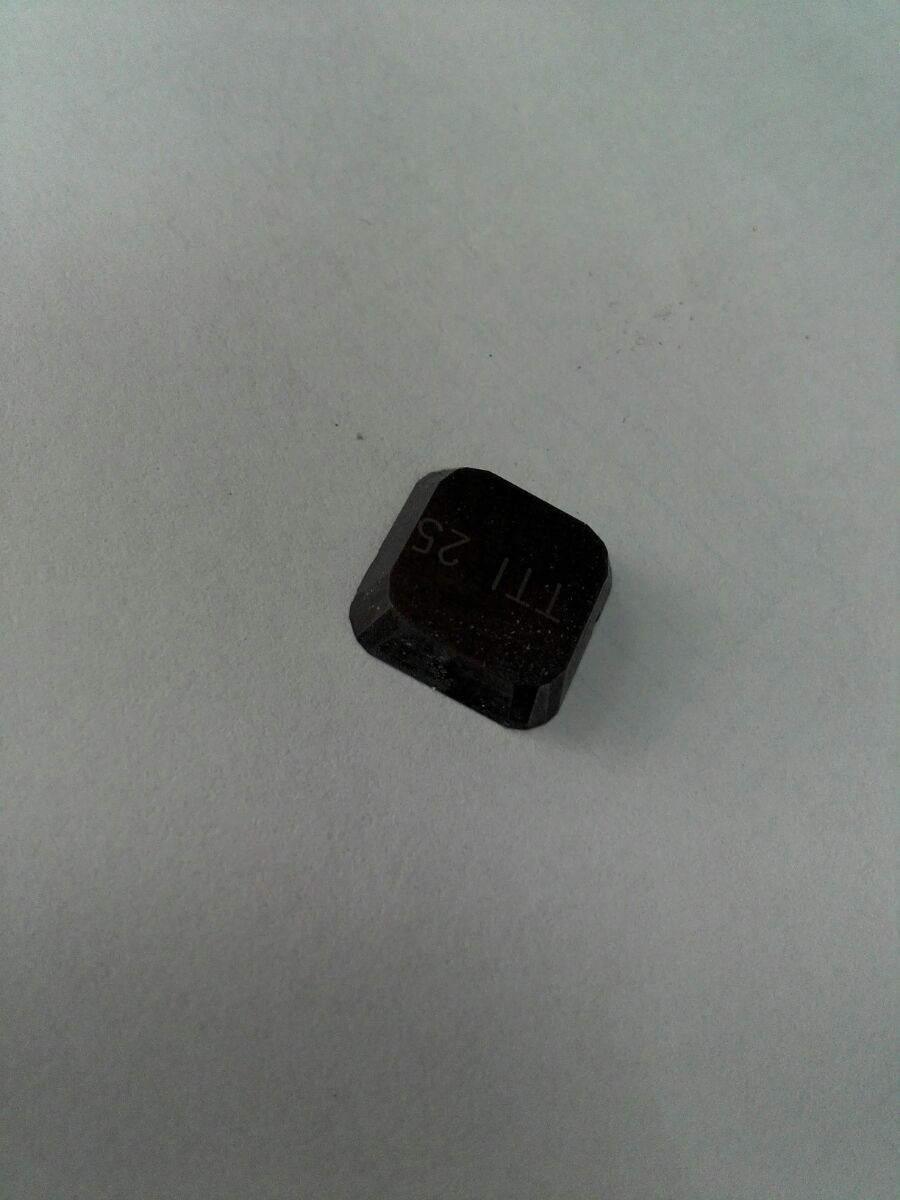

Carbide-tungsten Steel | |

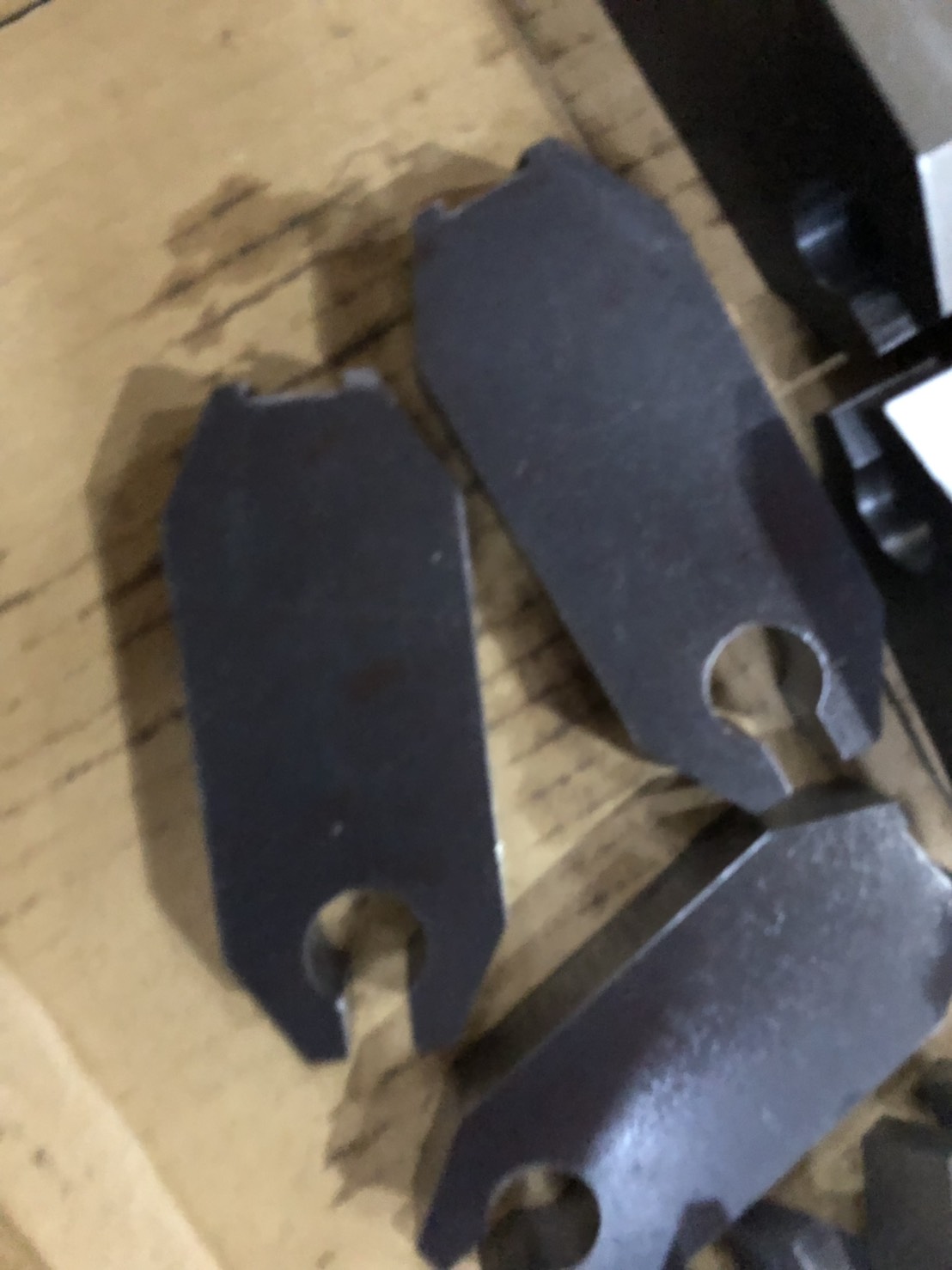

SM-047 | Blade adjusting block (big) | |
SM-003-4 SM-003-5 |
Blade Wheel |
