CIRCULATING RUBBER,PE,EVA SPONGE ROLLER SPLITTING SYSTEM
FC-B
FC-B = FC-322 + FC-323 + FC-324 + FC-325
APPLICATION:
Splitting(skiving)PE or EVA sponges into layer roll after sponge sheets have been jointed into roll.
FEATURES:
The production flow is motorize and automatic.(Easy to operate)
- Specifications
- Description
- Video

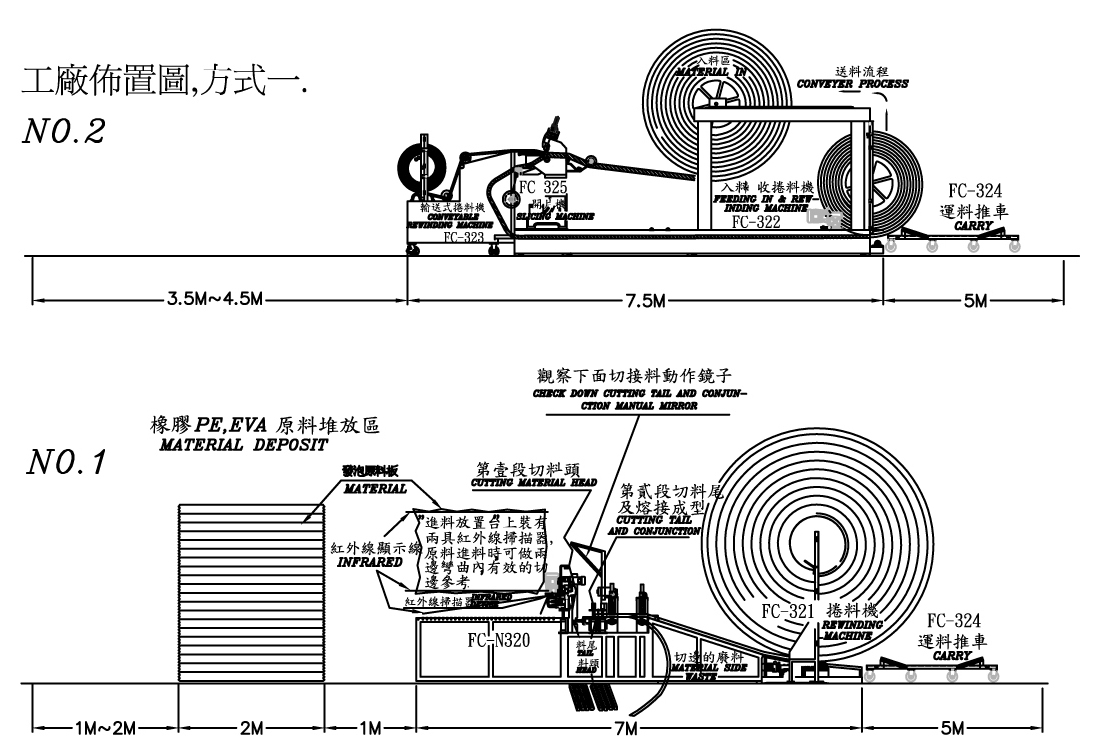

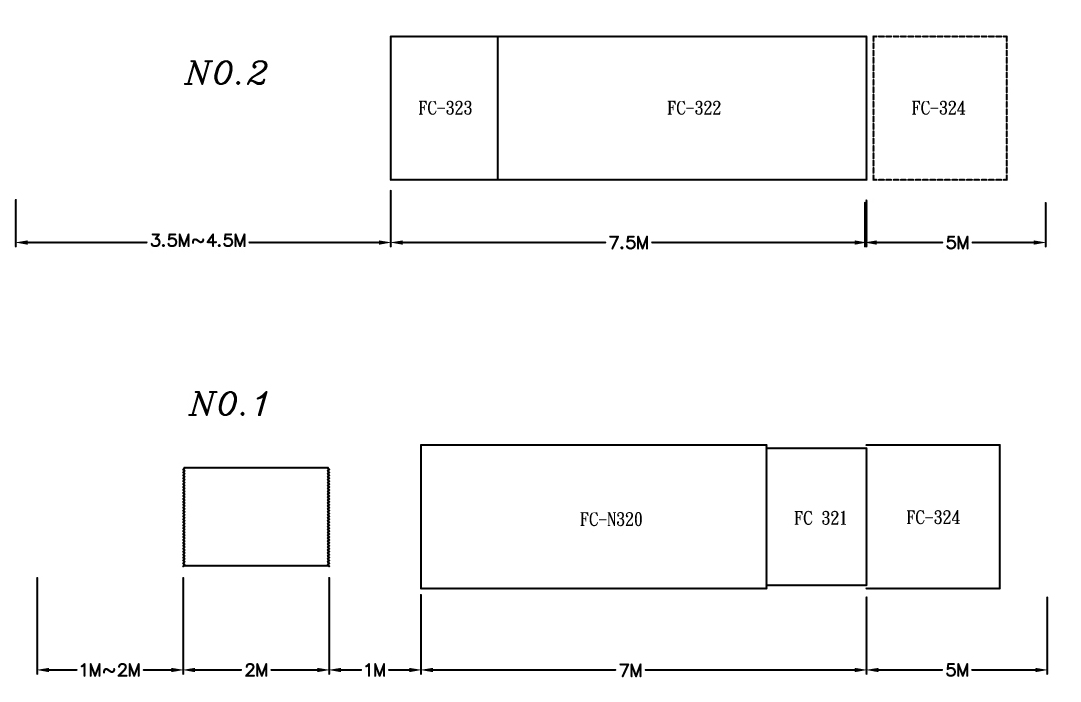

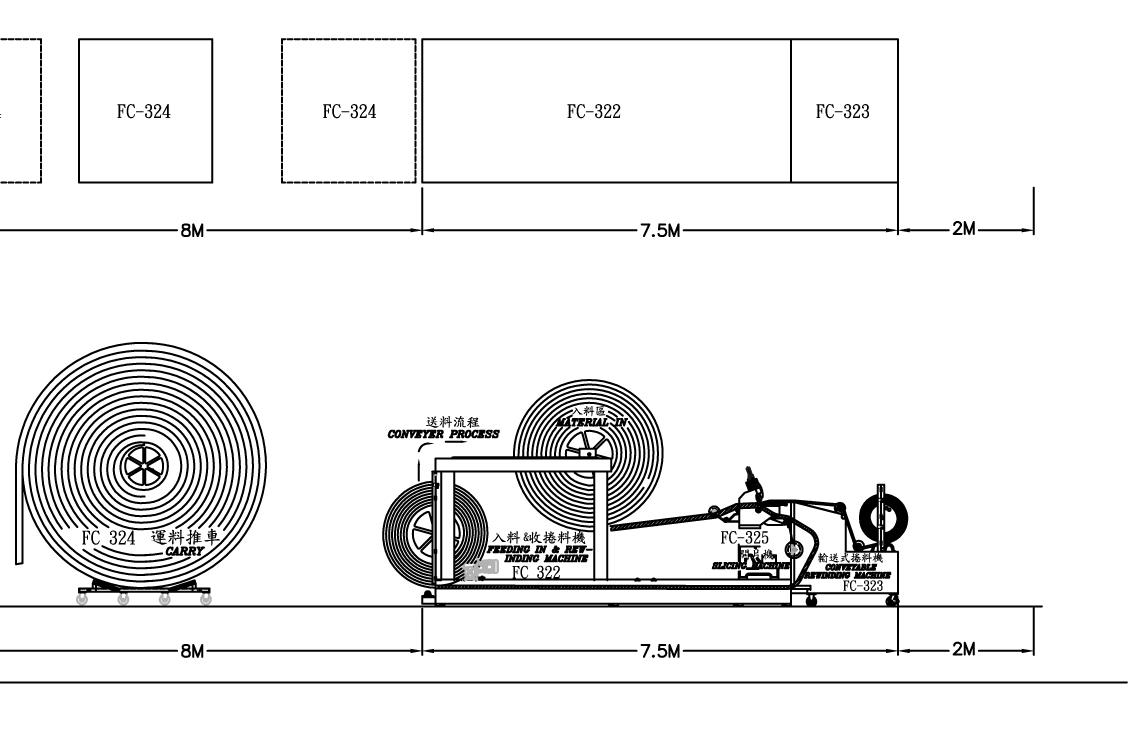

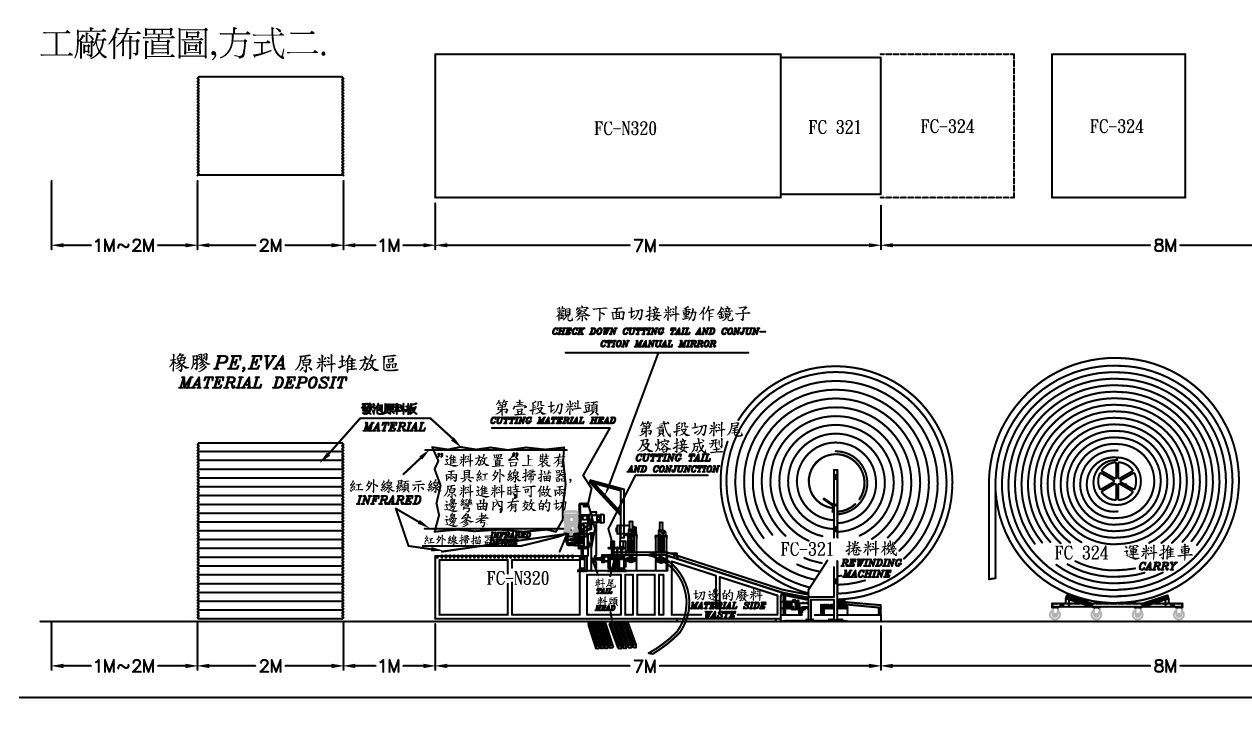

- Layout
| Model | Working width (mm) |
Power (HP) |
Splitting thickness | Productivity / hour | Close Tolerance |
Mechanical size (cm) |
Mechanical weight (kgs) |
|---|---|---|---|---|---|---|---|
| FC-322 | 1550 | 3 |
600*230*250 |
3500 | |||

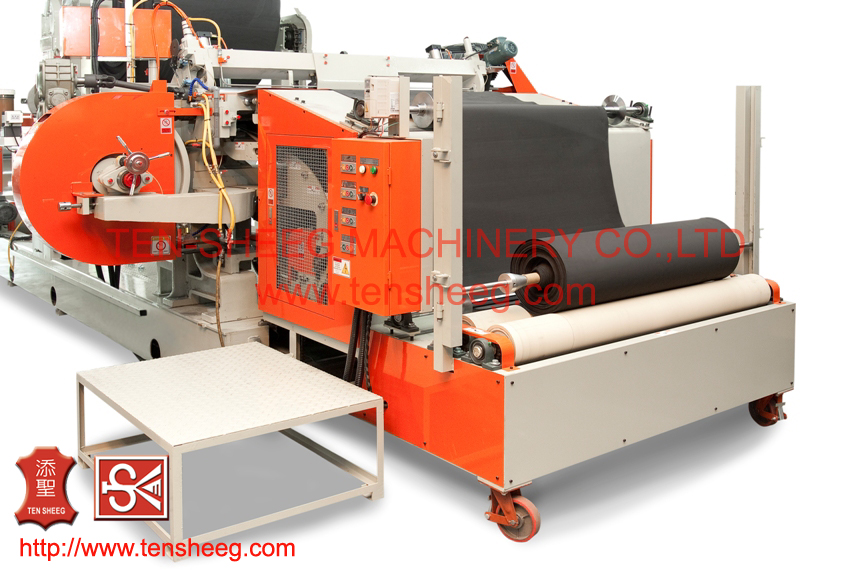

| FC-323 | 1550 | 1 1/2 |
220*180*160 |
1500 | |||
| FC-324 | 1550 | NO |
250*200*30 |
100 | |||

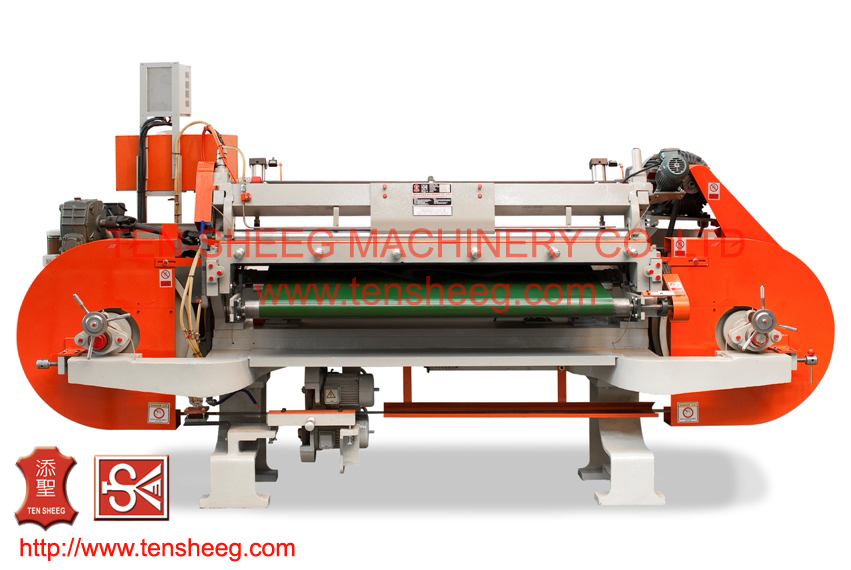

| FC-325 | 1800 | 15 | 0.5-100mm | 360-1400M(Reference ＆#118alue) | +/-0.10mm |
390*150*200 |
3000 |
