Foam Recycling - Powdering System
PC-873
Converting foam into powder.
適用範圍:
- EVA 發泡材料
- PE 發泡材料
- 橡膠發泡材料
性能特點:
- 搭配破碎機第一段先行將材料進行破碎
- 可調整破碎後材料投入磨粉主機之速度,避免過度投料導致磨粉效果降低
- 研磨主機機構箱有防噪音設計,避免研磨過程噪音影響操作人員工作舒適性
- 研磨主機磨頭搭配冷卻循環水系統,可避免高溫研磨導致材料變質
- 搭配震動篩選機可有效分離過大顆粒並再次送回研磨腔體再次研磨
- 搭配中央集塵系統,可有效減少粉塵狀況
- 標準篩網尺寸:25 mesh
Material:
EVA / PE Foam
EVA / PE Injection parts
SBR Foam
NBR Foam
Feature:
- Combined with shredder to chop material into small piece.
- Adjustable feeding speed into main grinding zone to avoid high temperature and damaing material properity.
- Noise protection design to provide better working environment.
- Effectively cooling system to make sure perfect grinding result with normal working temperature.
- Vibro Separator & Filter Machine to effectively separate finepowder. And return un-finished piece into main grinding zone again.
- With center dust collection system to reduce dust in working area.
- Screener : 25 mesh
主要組成:
-
- 入料輸送帶 x 1
- 破碎機 x 1
- 螺桿入料機 x 1
- 研磨主機 x 1
- 空氣輸送機 x 1
- 震動篩 x 1
- 空氣輸送機 x 1
- 成品料儲存桶 x 1
- 集塵機 x 1

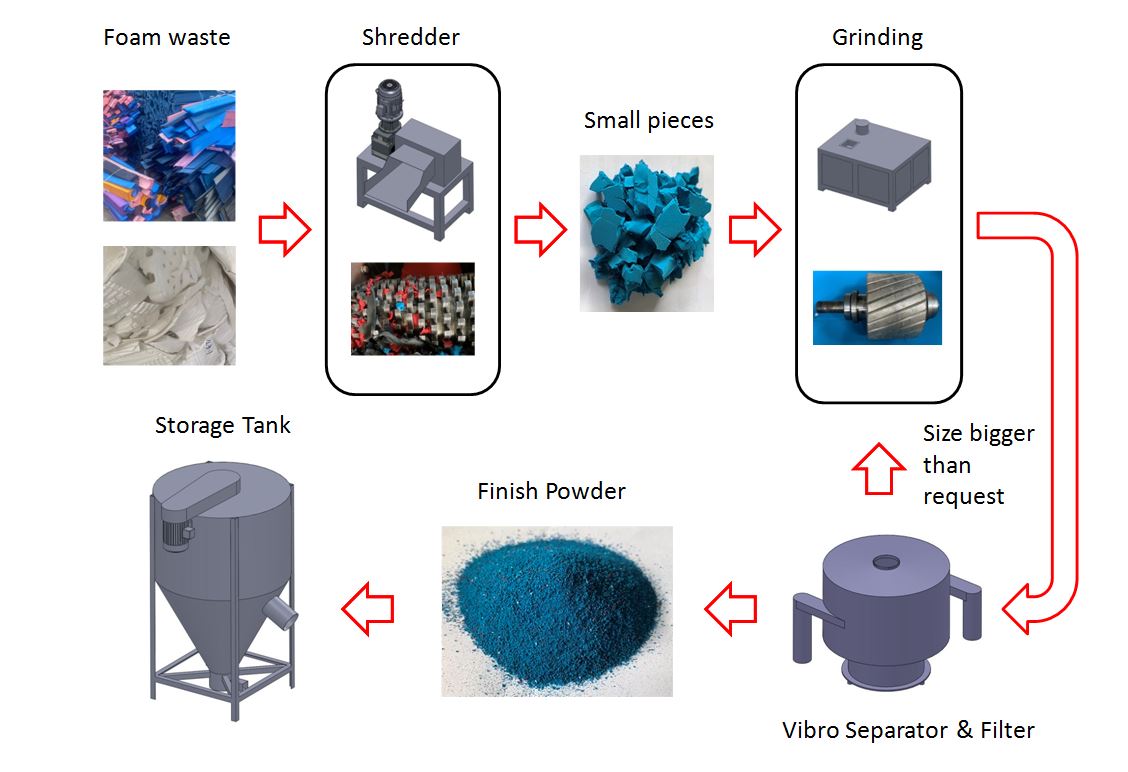

Main Compoments:
-
- Feeding Conveyor x 1
- Shredder x 1
- Screw Conveyor x 1
- Grinder x 1
- Air Conveyor x 1
- Vibro & Separator filter x 1
- Air Conveyor x 1
- Storage Tank x 1
- Dust Collector x 1
Production Capacity:
Material | Kg / Hour |
EVA Foam | 180 |
PE Foam | 180 |
EVA Injection | 180 |
PE Injection | 180 |
Rubber Foam | 180 |
SBR Foam | 180 |
Rubber Injection | 180 |
- Specifications
- Description
- Video

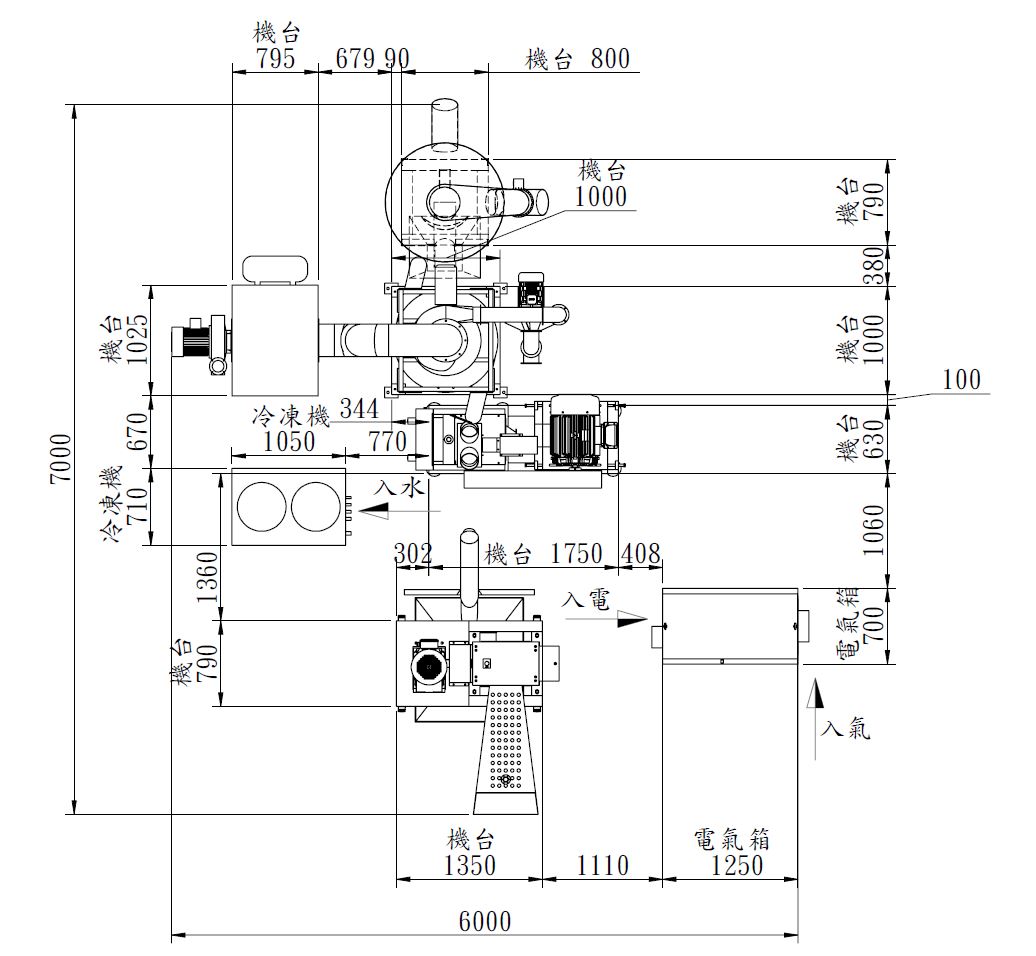

- Layout
項目 | Item | Brand / Power |
PLC | PLC | Fatek |
觸控屏幕 | Touch Panel | Delta |
變頻器 | Inverter | Delta |
研磨馬達 | Grinding Motor | 60 kw |
空氣輸送機 | Blower | 4kw + 0.75kw |
震動篩 | Vibro Separator & Filter | 1.5 kw |
儲料桶 | Storage tank | 4 kw |
集塵機 | Dust Collector | 4 kw |
螺桿輸送機 | Screw Conveyor | 1.5 Kw |
破碎機 | Shredder | 15 kw |
