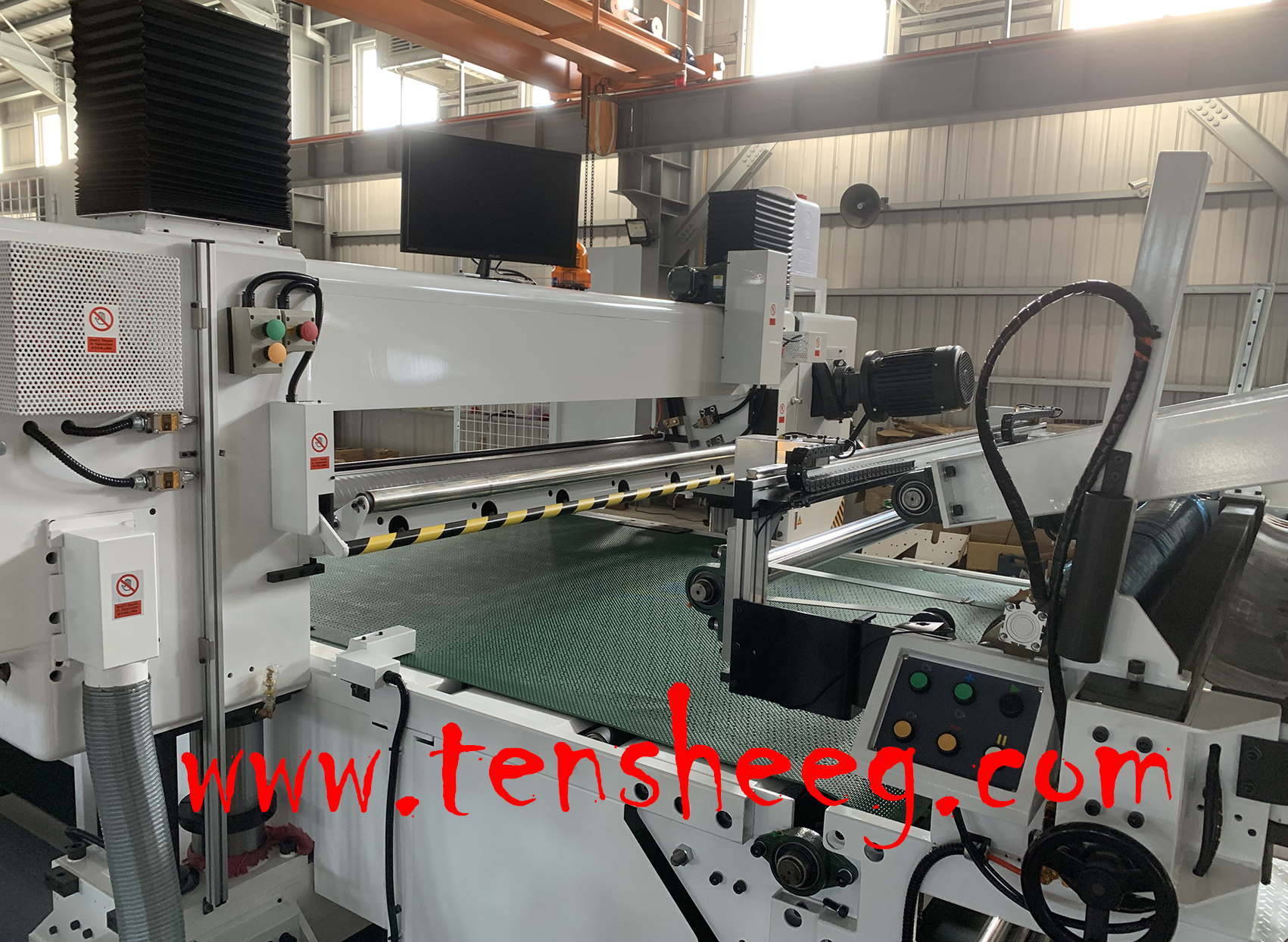

Automatic thickness measuring machine

1. Measuring thickness:20mm
2. Measuring tolerance:+-0.06mm
3. Measuring point:Both side has one, the distance between two sides is 1.2m
4. Include PLC x1, Laser for thickness measured x1, signal processor x 2, monitor x1

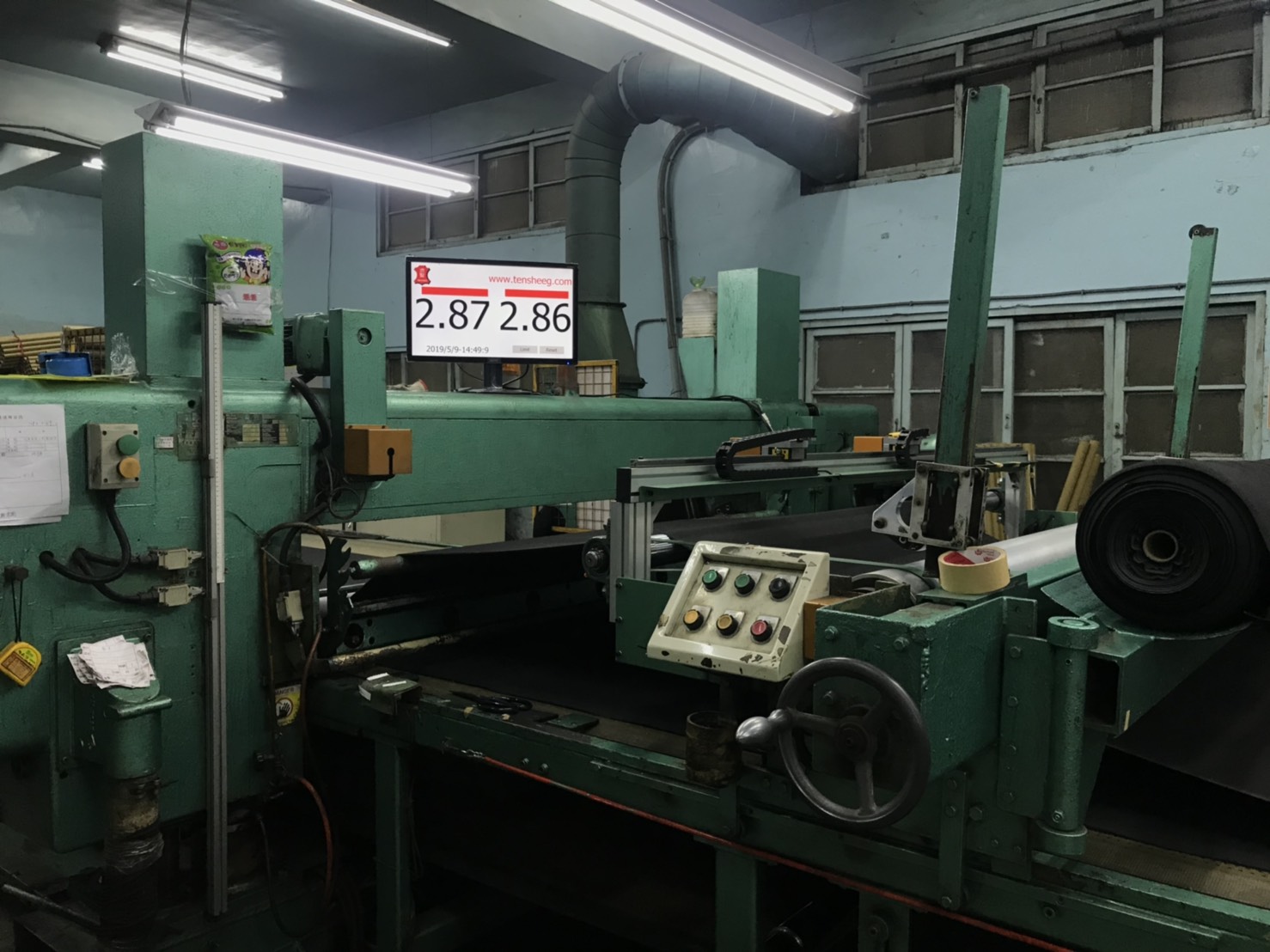

5. The display for the product is showing the measurement value on the monitor.
