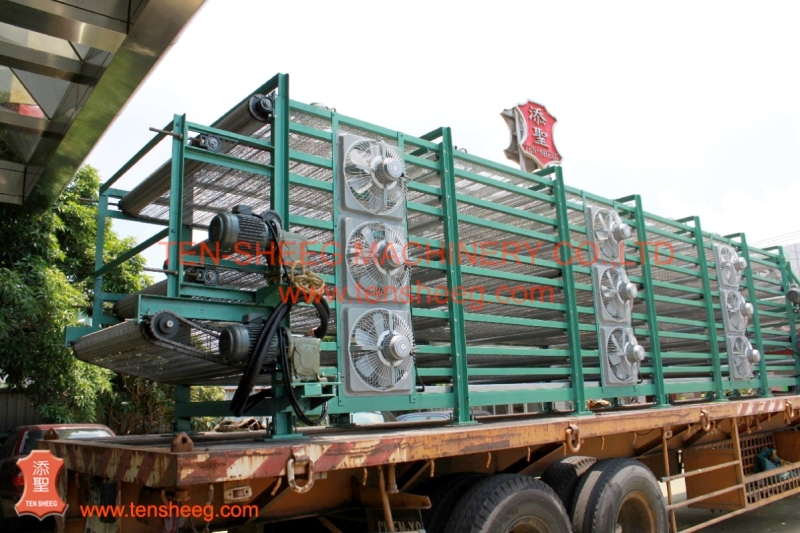

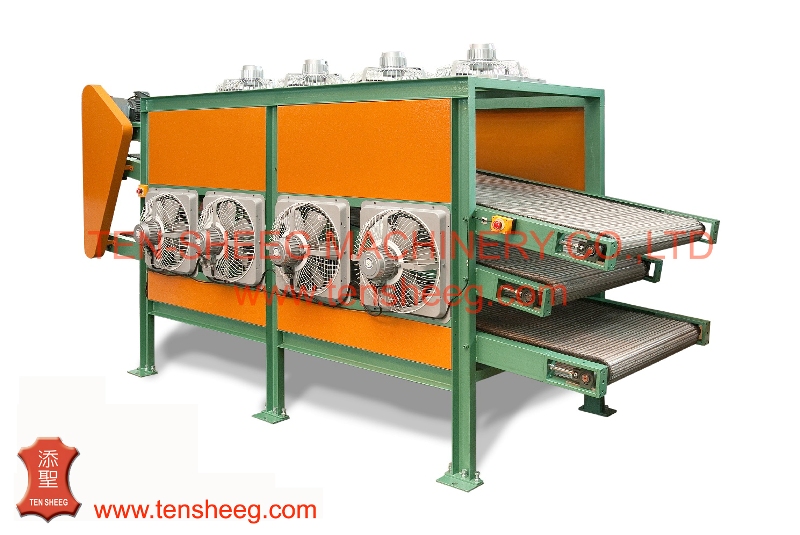

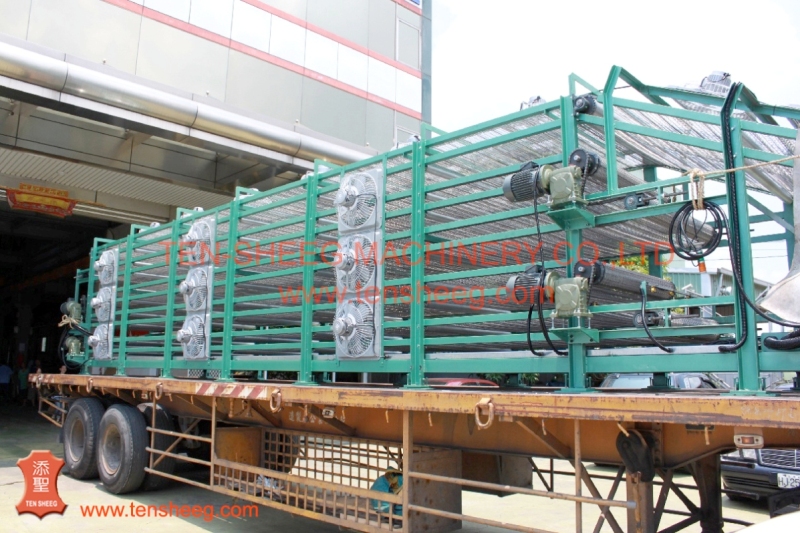

MESH TYPE BATCH OFF MACHINE
FT-999 Serial
Application:
This system is designed to cool and fold the rubber sheet from. It is with the cooling and storage of rubber sheets. Rubber sheet after cooling will be delivered to the next process.
Features:
a) Mesh length can be made according to customer's requirement.
b) The cooling method of batch-off machine is by a fan, fan quantity can be customized for different requirements.
c) Optional automatically grabbing device / swing device / cutting device / dipping tank / design / input material temperature detector / output material temperature detector.
- Specifications
Model | Mesh Width (mm) |
Mesh Layer |
Mesh Length | Sheet Thickness | Fan PCS |
Swing Device |
Cutting Device |
Dipping Tank | Printing Tank | Input Material Temperature Detector | Output Material Temperature Detecto0r |
---|---|---|---|---|---|---|---|---|---|---|---|
FT-999-6 | 600 | 3 or 5 Layers | Upon Customize Request | 5~12mm | Upon Customize Request |
Option |
|||||
FT-999-9 | 900 | ||||||||||
FT-999-12 | 1200 |
