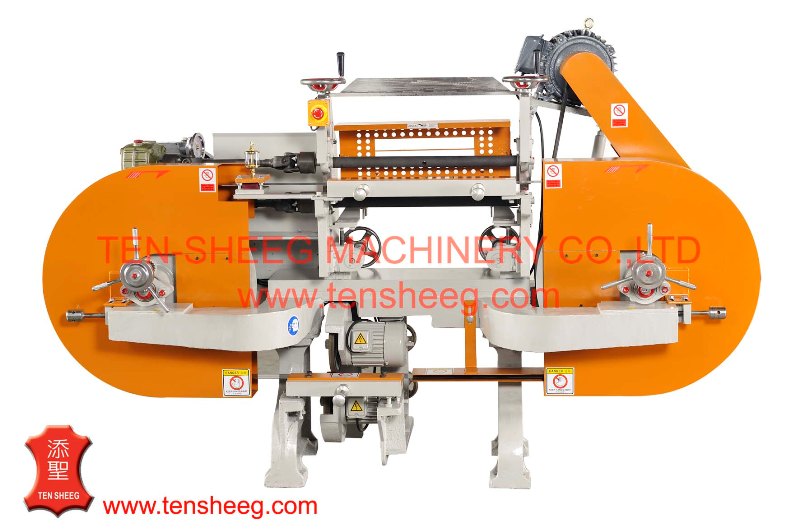

SLOPE SPLITTING MACHINES
TS-701/TS-702
APPLICATION:
Splitting sole of sports shoes,beach shoes,slippers.
FEATURES:
* Available for attaching with the automatic feeding device(after die-cut)
* Need to change moule roll.
- Specifications
- Video
- Layout
| Model | Working width (mm) |
Power (HP) |
Splitting Speed (M/Hr) | Max. Material Thickness (mm) | Splitting Hardness (Shore C) |
Material |
Splitting Concept |
|---|---|---|---|---|---|---|---|
| TS-701 | 600(24") | 5 | 360-1400 | 70 | 30~60 |
EVA, PE, PVC, RUBBER, CR, SBR, EPDM and similar material |
 |
| TS-702 | 760(30") | 7 | 360-1400 | 70 | 30~60 |
EVA, PE, PVC, RUBBER, CR, SBR, EPDM and similar material |
|

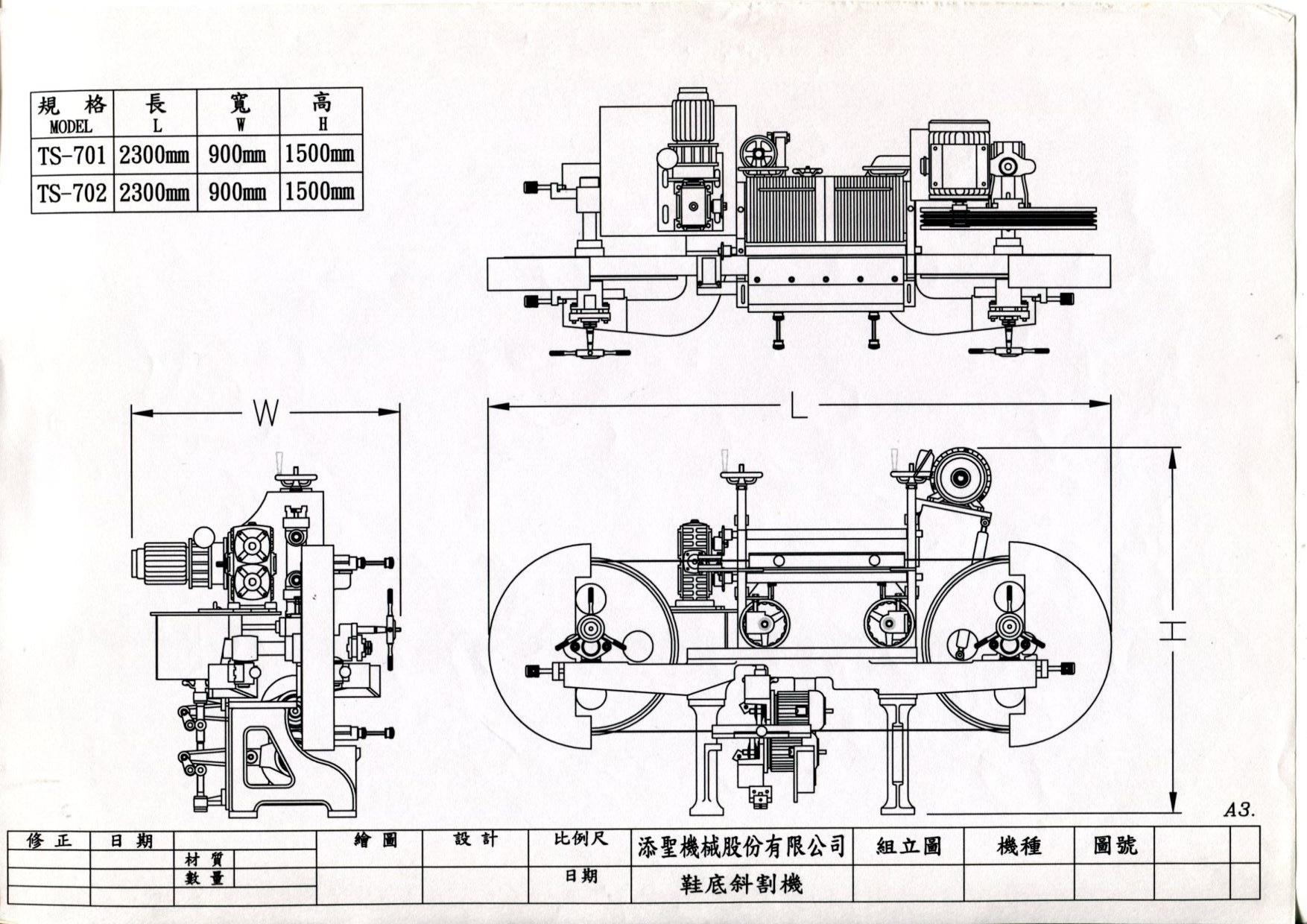

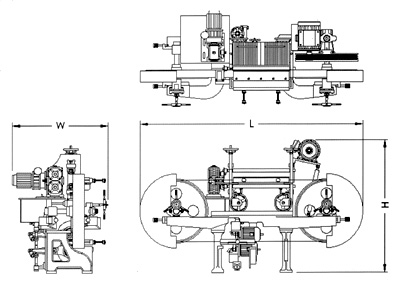

Size：
| Model | Length | Width | Height |
| TS-701 | 2300mm | 900mm | 1500mm |
| TS-702 | 2300mm | 900mm | 1500mm |
