THRMOELECTRIC LAMINATING / PATTERN EMBOSSING MACHINE
HC-368/HC-368C

APPLICATION:

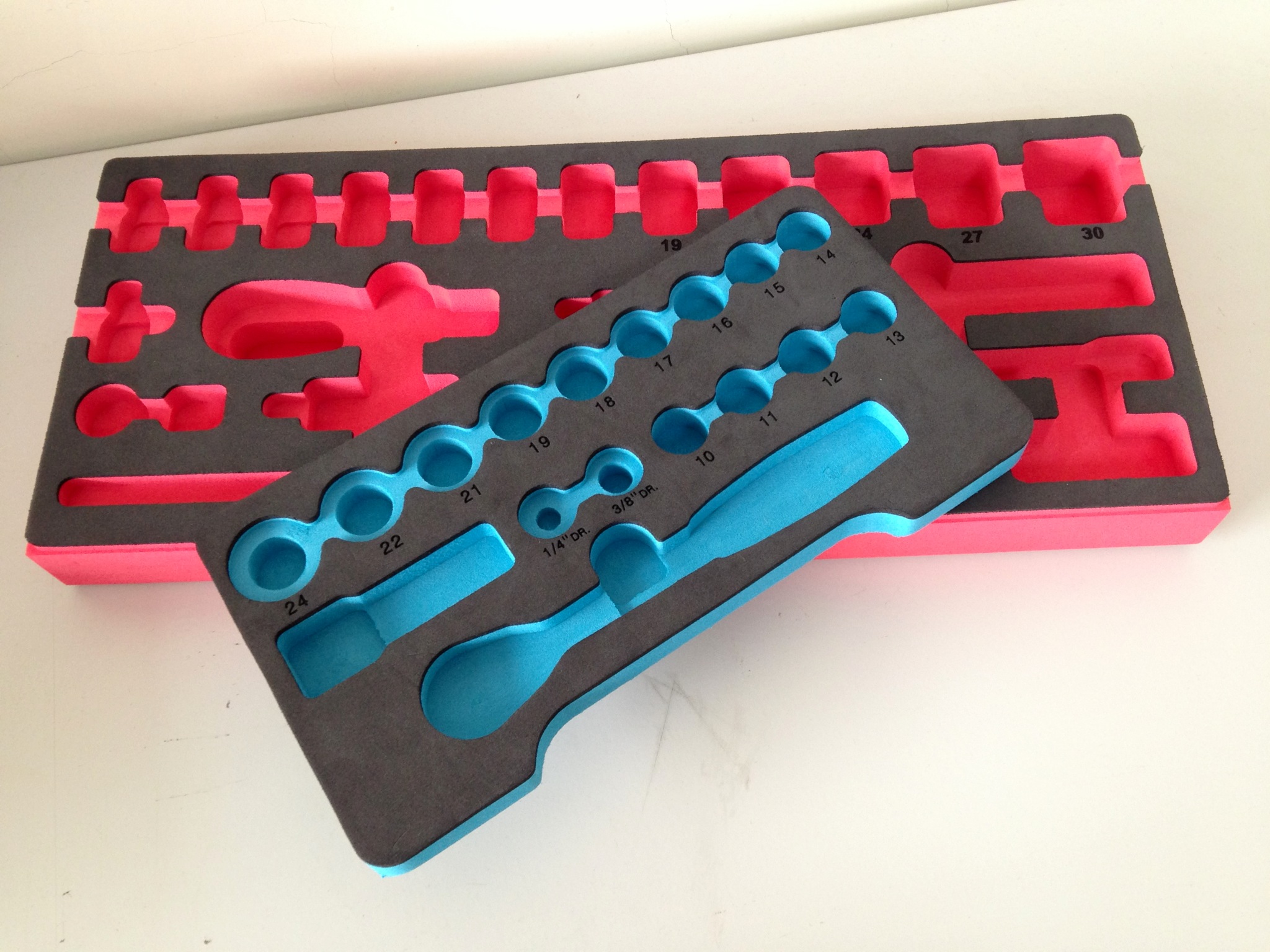

Laminating EVA+EVA,EVA+film,EVA+carpet,EVA+surface pattern conve

FEATURES:
1. Thermoelectric laminating doesn't need to use glue or any kind of adhesive. (Environment safe)

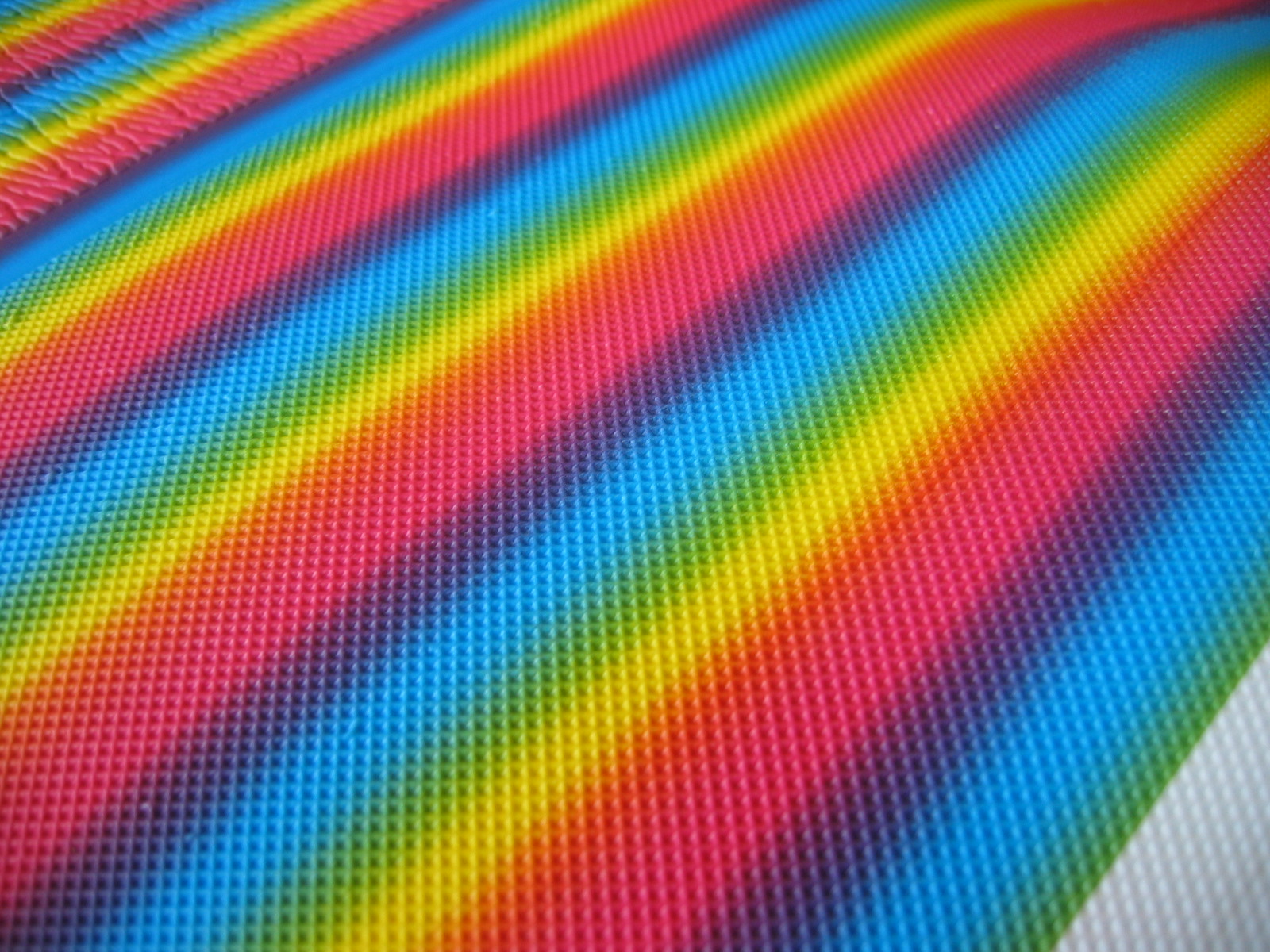

2. Special surface-pattern converting:
* Custom-design pattern roller to fit customer's request. (Available to -make company logo on the pattern roller)
* Save money. With this machine, you don't need to stock and make many press mould. You can just have plane press mould, after foaming and splitting into the thickness(request). And then run through the machine. You will have same produce as from press mould; also you don't need too many of EVA sheet(Whirl you already sole the upper and bottom skins).
* One pattern roller is coasted less than a set of the heating press mould.
* Laminating with film can convert the surface-pattern at once.

  • Specifications
Model Working width (mm)

Power (HP)

Electric power (kW) Productivity / Hour Machine size(cm)

Machine weight (kgs)

Cutting Device

HC-368 1550 1 1/4 13.55 420M (Reference) 420*220*180

2000

No
HC-368C 1550 2 13.55 420M (Reference) 580*220*180

2500

Yes



Mainland invention patent
