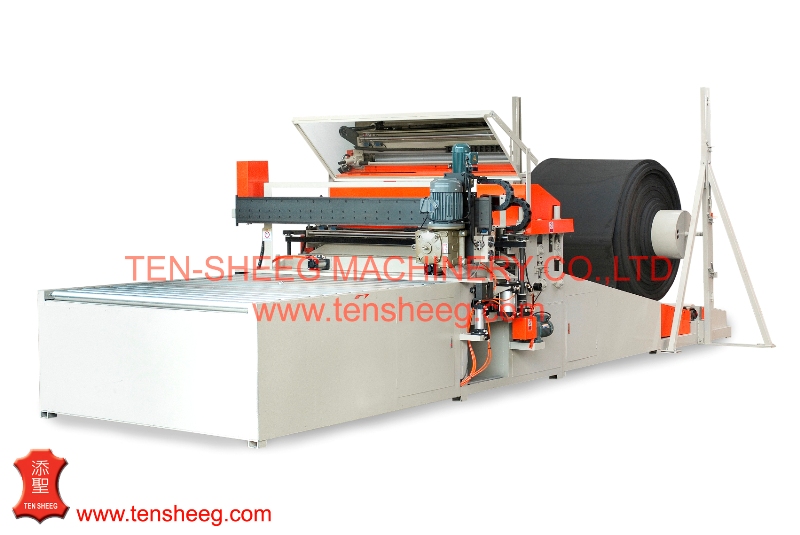

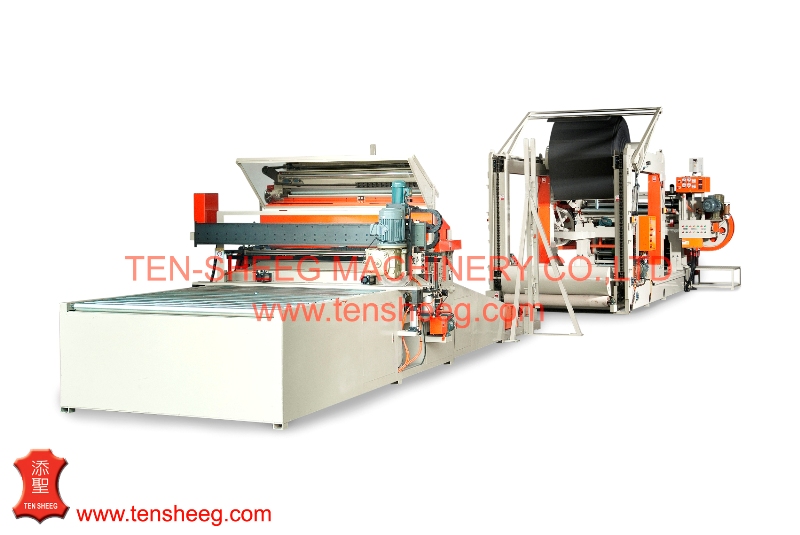

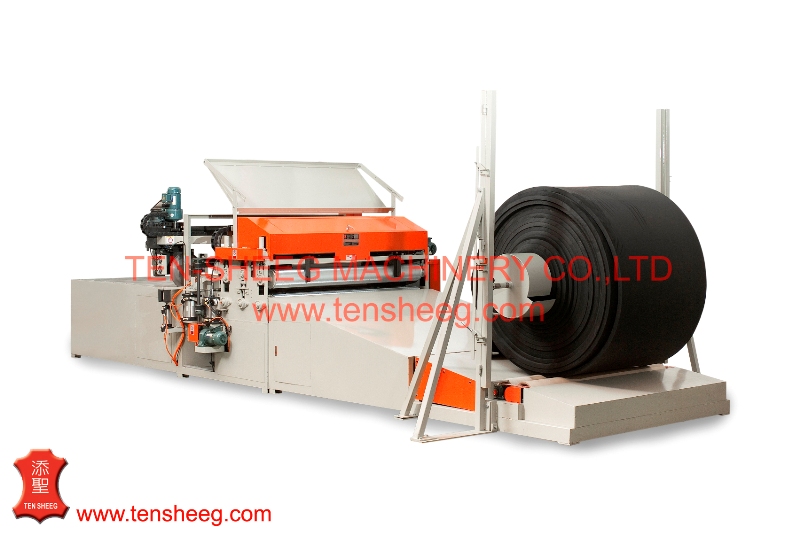

THERMOELECTRIC AUTOMATIC CUTTING EDGE & CONJUNCTION M/C
FC-A

FC-A = FC-N320 + FC-321

APPLICATION:

Welding and joining EVA, PE, Sponge sheets into a roll by thermoelectric heat.

FEATURES:
1. Use thermoelectric heat welding and joining, doesn't need to use glue any kind of adhesives. (environment safe)
2. Motorized cutting front, rear and both side portions of the material, and welding at once. Save time and increase productivity.
3. The laser guideline is amicable to operation.

  • Specifications
  • Video
Model Working width (mm)

Power (HP)

Production Capacity (PCs/Hr) Max. Material Thickness (mm)

Material

Max. Diameter of Roll Material

FC-320 1550 6 180-200 20-100

EVA, PE, and  similar material




FC-321 1550 1/2     3800


Below this machine has thehonor to receive each patent:

Round cutter structure Taiwan new patent
Number 132739
Mainland new patent
Number ZL97220215.3
American invention patent
Number 5853529
German invention patent de
Number 19747480
Indonesian invention patent



The revertex or the sheet rubber meet the material machine Taiwan new patent
Number 91657
Mainland new patent
Number ZL93241482.6
American invention patent
Number 5415722
German invention patent
Number 29904963.9



Leads is locating film of the effect to weld the installment Taiwan new patent
Number 139427
Mainland new patent
American invention patent
Number 159535



Round cutter gear box structure Taiwan new patent
Number 162277
Mainland new patent



The infrared detects the installment Taiwan new patent
Number 121960



Around electric heating knife improvement Taiwan new patent
Number 108587
Mainland new patent
Number ZL95222509.3
American invention patent
Number 5843275
Thai invention patent
Number
Malaysian invention patent
Number
Indonesian invention patent
Number 0006966



Cutting edge round knife structure Taiwan new patent
Number 92089
