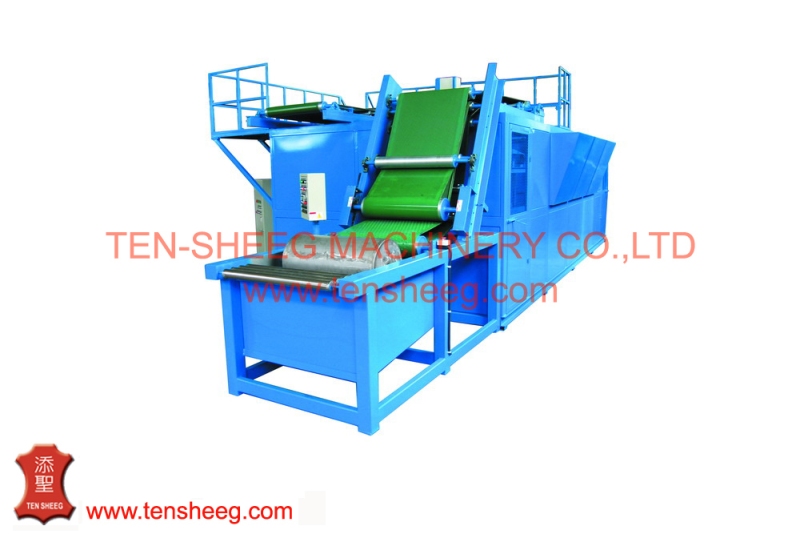

APPLICATION:
This system is designed to cool and fold the rubber sheet from open mill or roller head extruder after the internal mixer.
- Specifications
- Description
Model |
Length of Max Hanging (mm) |
Sheet Width (mm) |
Hanging Bar (Pitch/Bar) |
Capacity Length (M) |
Dimension (M) |
---|---|---|---|---|---|
FT-998B-SN | 1500 | 300 | 300mm/33PCS | 100 | 9.7*4.3*2.5 |
FT-998B-SW | 1500 | 600 | 300mm/33PCS | 100 | 9.7*4.3*2.5 |
FT-998B-LN | 1500 | 300 | 150mm/63PCS | 200 | 9.7*4.3*2.5 |
FT-998B-LW | 1500 | 600 | 150mm/63PCS | 200 | 9.7*4.3*2.5 |
Remarkable Feature:
a) Saving system installed space:
With the same system designed length, the U Type cooling system can double the cooling rubber sheet.
b) Saving human power:
A single working term can collect the rubber sheets after cooling and monitor the before-cooling rubber feeding into the cooling system at the same time and the same position.
c) Optional automatically grabbing device design.
d) Optional swing set or cutting set design.

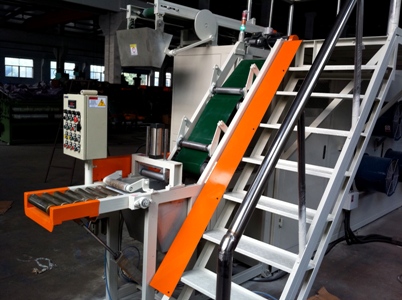

Structure Feature:
a) Dipping Tank
b) Rubber Sheet Lifting Conveyer
c) Rubber Sheet Cooling Box
d) Cooling Fans
e) Take Away Conveyor
