THERMOELECTRIC EVA & PE BUILDING-UP LAMINATING MACHINE
HC-363/HC-366
APPLICATION:

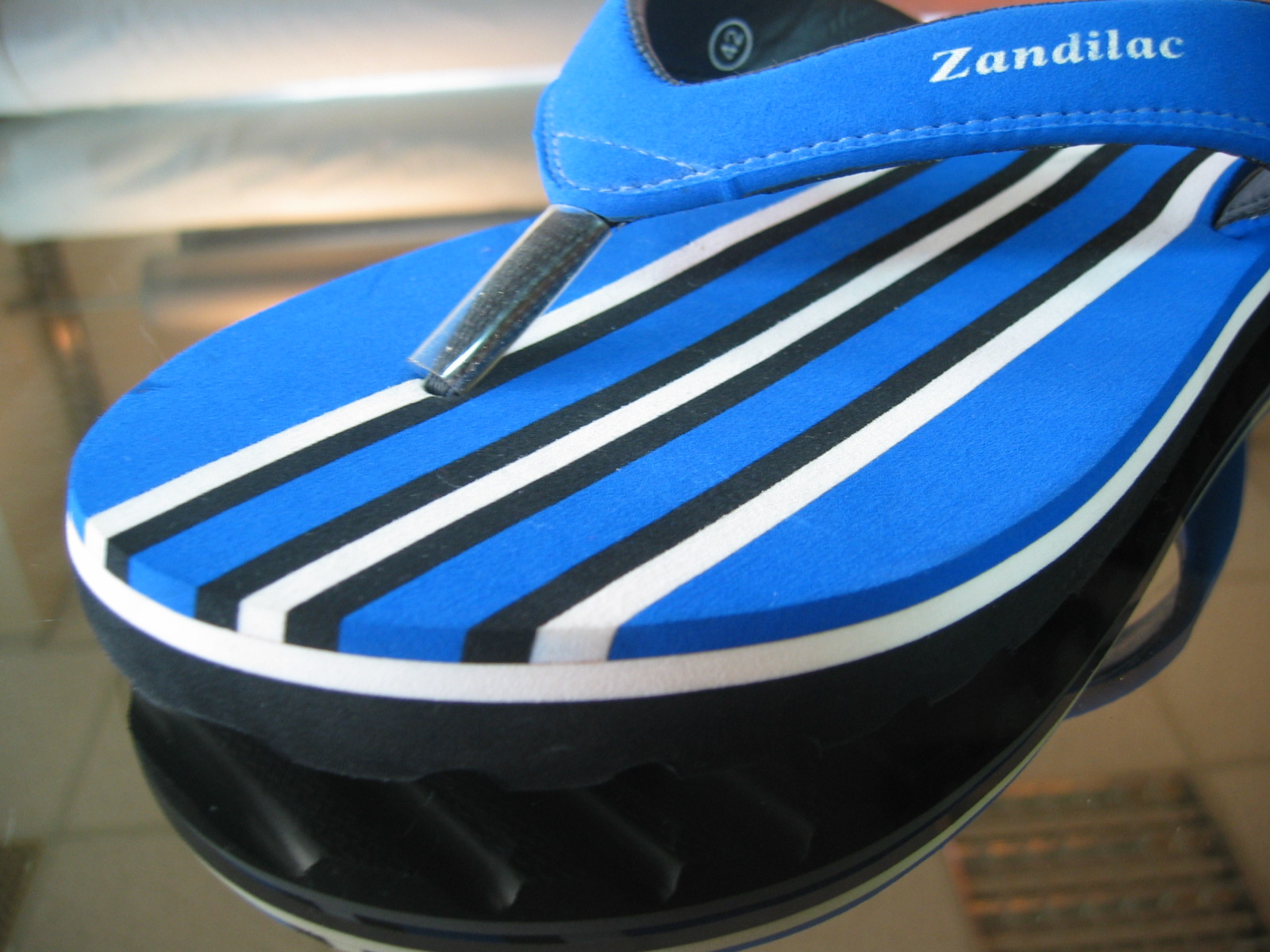

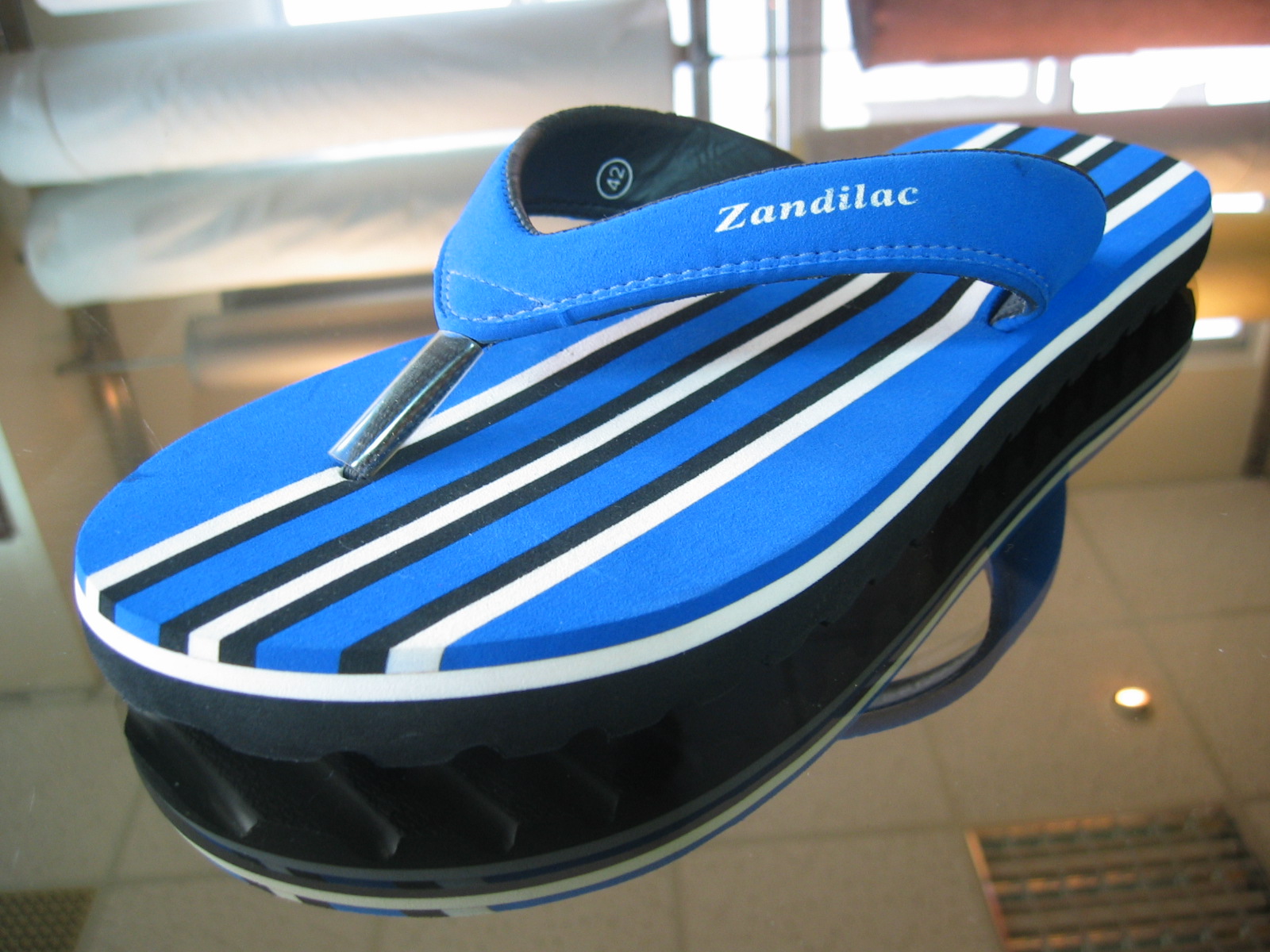

EVA laminating specially used in building-up the EVA sole of beach shoes,EVA high-heels,sandals and slippers, ect...
FEATURES:
1. Thermoelectric welding and bond two material.(whole pocess within 2 minuties)
2. No need to use glue or any kind of adhesives.(environment safe)

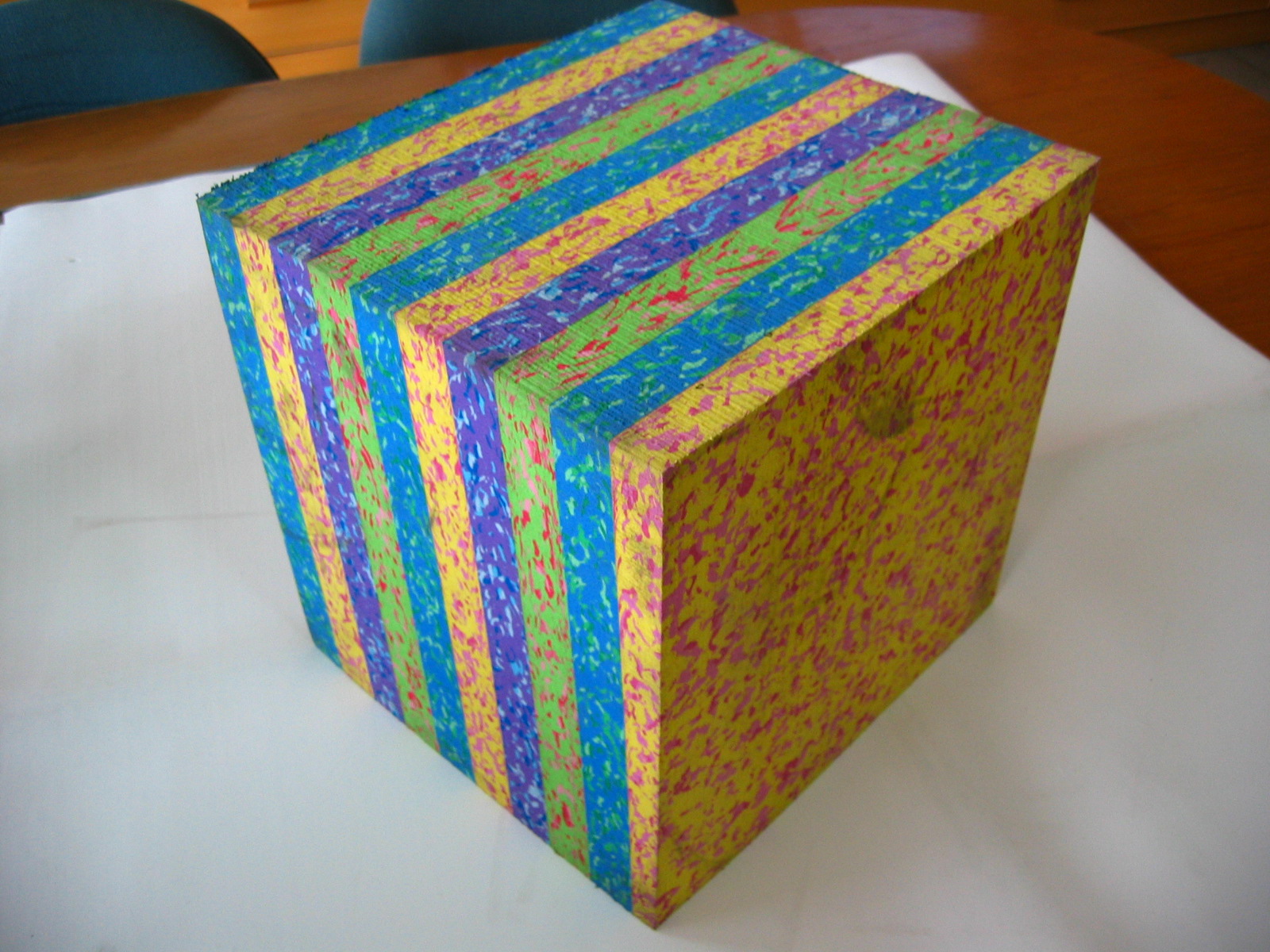

3. Welding three pieces 100cm width EVA strip at one,the maximize height is 100cm(1M).
4. Guideline mould marker is available for installing on this machine.Save time(faster then human)and money(avoid human error).
- Specifications
- Video
Specification:
| Model | HC-363 | HC-366 |
|---|---|---|
| Working length | 1500mm | 1700mm |
| Working width | 300mm | 600mm |
| Working altitude | 700mm | 1000mm |
| Power | 2HP | 3HP |
| Electric power | 6.55kw | 12.25kw |
| Productivity / hour | 240pcs Reference (regards material but to decide) |
240pcs Reference (regards material but to decide) |
| Mechanical size | 220*130*200cm | 230*150*260cm |
| Mechanical weight | 2000kgs | 3000kgs |
Below this machine has the honor to receive each patent：
| American invention patent |  |
|
| West German invention patent |  |
|
| Mainland invention patent |  |
